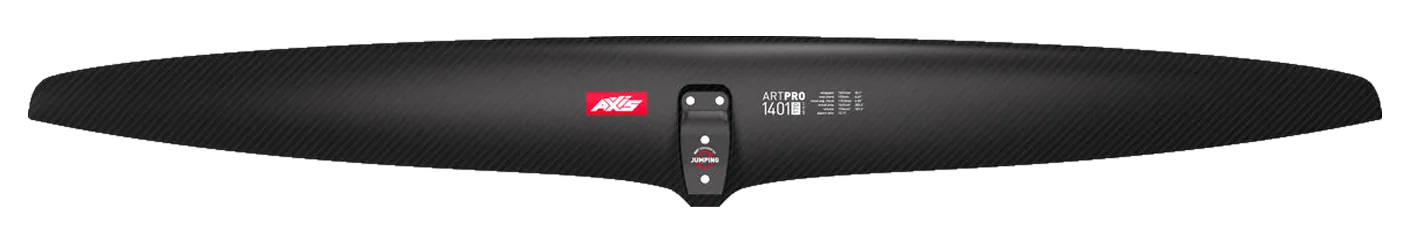

Axis ART PRO 1401
- 1,647area, cm²
- 1,401span, mm
- 12.17aspect ratio
- Very highaspect · AR 11.5 – 15.0
Family ART PRO Area basis flat Chord 170 mm Brand’s category Glide / high aspect carbon · 2025-2026
No current wing from another brand is within the tolerances; the nearest are drawn instead, ranked closest first. The Duotone Amp 2.0 SLS 1550 (#1) is already over it. Select a numbered wing to draw it — up to three at a time.
The ART PRO runs 10 sizes, 518–1,647 cm²; aspect ratio moves 11.1–12.2 across the range.
Its 1,401 mm span is 18% wider than typical for the area — the median across the 78 current wings within 10% of its size is 1,186 mm.
Closest wings from other brands
No current wing from another brand is within ±5% of area and ±8% of aspect ratio of this one.
The nearest current wings
None of these is within the tolerances above — each misses on area, on aspect ratio, or on both, by up to 1.2× the tolerance.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Duotone | Amp 2.0 SLS 1550 | 1,550 | -5.9% | 13.20 | +8.5% | 1,430 | Very high aspect |
| Takoon | Pump Pro Front Wing 1550 | 1,550 | -5.9% | 13.00 | +6.8% | 1,420 | Very high aspect |
| Sabfoil | Leviathan Blackbird 1400 | 1,549 | -6.0% | 12.30 | +1.1% | 1,380 | Very high aspect |
Specifications
| Family | ART PRO |
|---|---|
| Size | ART PRO 1401 |
| Area, cm² | 1,647 |
| Area basis | flat |
| Span, mm | 1,401 |
| Chord, mm | 170 |
| Aspect ratio | 12.17 |
| Band | Very high aspect |
| Brand’s category | Glide / high aspect |
| Disciplines | — |
| Construction | carbon |
| Model year | 2025-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
