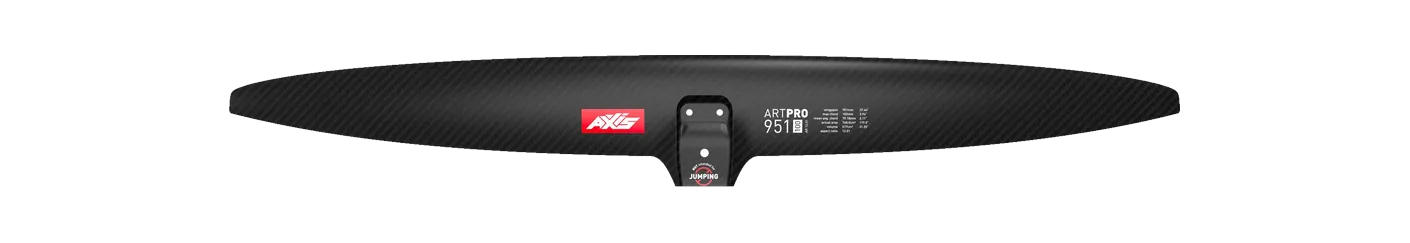

Axis ART PRO ART PRO 951 hydrofoil front wing: 768 cm², 951 mm span, aspect ratio 12.01, with its closest equivalents from other brands within ±5% area and ±8% aspect ratio. Figures from Axis's own published specifications.
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a match inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Cabrinha | Prestige 760 | 760 | -1.0% | 12.38 | +3.1% | 970 | C5 Very high aspect |
| F-One | EAGLE X UHM Carbon EAGLE X 800 | 800 | +4.2% | 12.00 | -0.1% | 980 | C5 Very high aspect |
| Armstrong | UHA (Ultra High Aspect) UHA770 | 770 | +0.3% | 12.60 | +4.9% | 985 | C5 Very high aspect |
| Family | ART PRO |
|---|---|
| Size | ART PRO 951 |
| Area, cm² | 768 |
| Area basis | flat |
| Span, mm | 951 |
| Chord, mm | 100 |
| Aspect ratio | 12.01 |
| Band | C5 Very high aspect |
| Brand files it under | Glide / high aspect |
| Disciplines | — |
| Construction | carbon |
| Model year | 2025-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
See Axis on the plot →Data current to August 2026. Fast Bobby is the researcher, never the reviewer: every figure above is the manufacturer's published claim, converted to comparable units, and nothing here is a riding impression.
