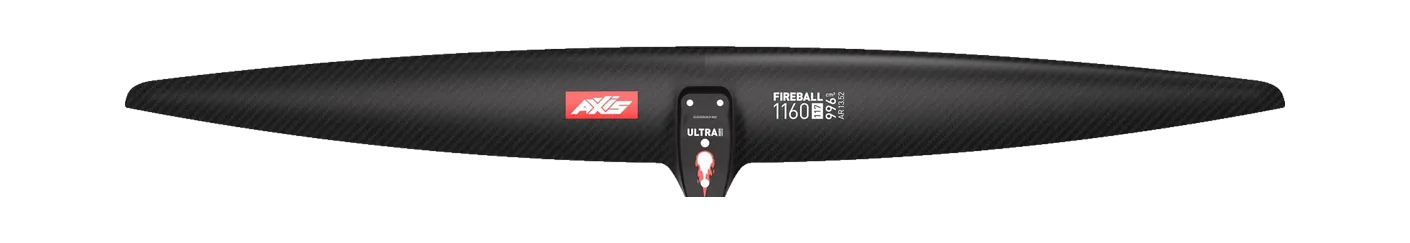

Axis Fireball ULTRA 1160
- 996area, cm²
- 1,160span, mm
- 13.52aspect ratio
- Very highaspect · AR 11.5 – 15.0
Family Fireball Area basis flat Chord 117 mm Brand’s category Downwind Disciplines downwind, race, pump, wing UHM carbon · 2025-2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the Unifoil Quest 160 (#2), is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Fireball ULTRA runs 9 sizes, 604–1,525 cm², and changes proportion as it grows: aspect ratio runs 12.8 at one end of the range to 20.1 at the other, so its sizes differ in shape as well as in area.
Its 1,160 mm span is 22% wider than typical for the area — the median across the 135 current wings within 10% of its size is 950 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Code Foils | R Series Front Wing 960R | 960 | -3.6% | 13.00 | -3.8% | 1,115 | Very high aspect |
| Unifoil | Quest 160 | 1,032 | +3.6% | 13.40 | -0.9% | 1,175 | Very high aspect |
| Armstrong | UHA (Ultra High Aspect) UHA970 | 970 | -2.6% | 12.60 | -6.8% | 1,106 | Very high aspect |
Specifications
| Family | Fireball |
|---|---|
| Size | Fireball 1160 |
| Area, cm² | 996 |
| Area basis | flat |
| Span, mm | 1,160 |
| Chord, mm | 117 |
| Aspect ratio | 13.52 |
| Band | Very high aspect |
| Brand’s category | Downwind |
| Disciplines | downwind, race, pump, wing |
| Construction | UHM carbon |
| Model year | 2025-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
