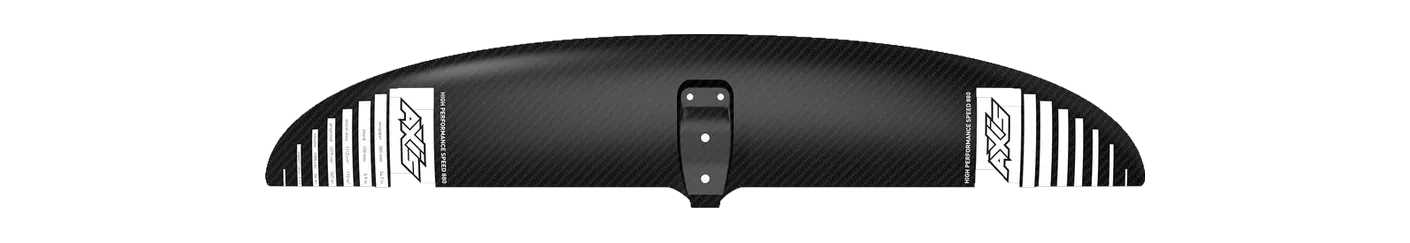

Axis HPS (High Performance Speed) 880

1,112area, cm²
880span, mm
7.17aspect ratio
Mid-lowaspect · AR 6.0 – 8.5

Family HPS Area basis flat Chord 150 mm Brand’s category All-round / freeride Disciplines wing, downwind, prone, sup, kite, pump, wake carbon · 2025-2026

Drawn to scale · the closest current wings

true relative scale

The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the GONG Ascent V3 L (#2), is already drawn over it. Select a numbered wing to draw it — up to three at a time.

1ENSIS INFINITY ACE Front Wing 1140no outlineSpecs · table ↓

Axis HPS (High Performance Speed) 880 · 880 mm span · traced from the manufacturer’s plan view · drawn nose-up, wings aligned on the mid-point of the root chord (the dotted line). ▬ GONG Ascent V3 L · 870 mm

The HPS runs 7 sizes, 769–1,502 cm², and changes proportion as it grows: aspect ratio runs 5.5 at one end of the range to 7.5 at the other, so its sizes differ in shape as well as in area.

Its 880 mm span is 12% narrower than typical for the area — the median across the 110 current wings within 10% of its size is 1,005 mm.

Closest wings from other brands

Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.

Current wings from other brands within ±5% of area and ±8% of aspect ratio of the Axis HPS (High Performance Speed) 880, closest first.
Brand	Wing	Area cm²	Δ area	Aspect ratio	Δ AR	Span mm	Band
ENSIS	INFINITY ACE Front Wing 1140	1,140	+2.5%	7.50	+4.6%	925	Mid-low aspect
GONG	Ascent V3 L	1,080	-2.9%	7.00	-2.4%	870	Mid-low aspect
Duotone	Carve 3.0 D/LAB 1100	1,100	-1.1%	6.70	-6.6%	860	Mid-low aspect

Specifications

Every figure is Axis's own, read from the source linked in the last row, converted to area in cm² and span in mm.
Family	HPS
Size	HPS 880
Area, cm²	1,112
Area basis	flat
Span, mm	880
Chord, mm	150
Aspect ratio	7.17
Band	Mid-low aspect
Brand’s category	All-round / freeride
Disciplines	wing, downwind, prone, sup, kite, pump, wake
Construction	carbon
Model year	2025-2026
Source	manufacturer

The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.

Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
