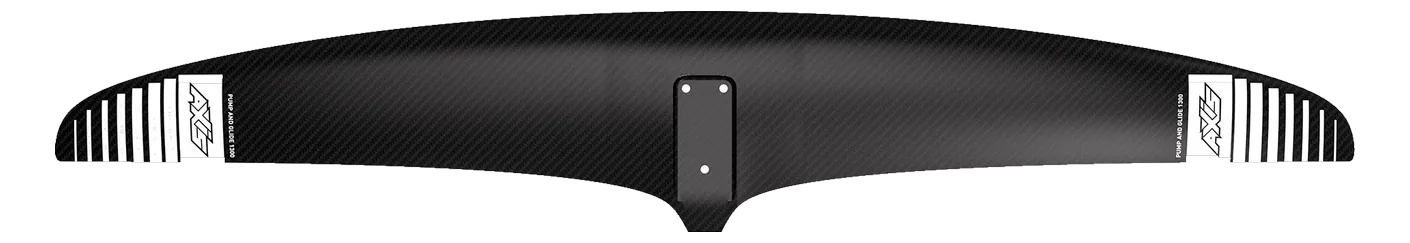

Axis PNG (Pump and Glide) 1300
- 1,712area, cm²
- 1,300span, mm
- 9.94aspect ratio
- Highaspect · AR 9.5 – 11.5
Family PNG Area basis flat Chord 180 mm Brand’s category Pump / dock Disciplines downwind, sup, prone, pump, wing, wake, kite carbon · 2025-2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the Takoon Pump Front Wing 1700 (#2), is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The PNG runs 6 sizes, 1,102–2,080 cm², and changes proportion as it grows: aspect ratio runs 6.8 at one end of the range to 9.9 at the other, so its sizes differ in shape as well as in area.
Its 1,300 mm span is 10% wider than typical for the area — the median across the 71 current wings within 10% of its size is 1,180 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Code Foils | S Series Front Wing 1725S | 1,725 | +0.8% | 9.50 | -4.4% | 1,280 | Mid aspect |
| Takoon | Pump Front Wing 1700 | 1,700 | -0.7% | 10.40 | +4.6% | 1,330 | High aspect |
| GONG | Trail V3 L | 1,660 | -3.0% | 9.40 | -5.4% | 1,250 | Mid aspect |
| GONG | Trail V3 Atmo XL (Team / Carbon HM) | 1,650 | -3.6% | 10.10 | +1.6% | 1,290 | High aspect |
Specifications
| Family | PNG |
|---|---|
| Size | PNG 1300 |
| Area, cm² | 1,712 |
| Area basis | flat |
| Span, mm | 1,300 |
| Chord, mm | 180 |
| Aspect ratio | 9.94 |
| Band | High aspect |
| Brand’s category | Pump / dock |
| Disciplines | downwind, sup, prone, pump, wing, wake, kite |
| Construction | carbon |
| Model year | 2025-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
