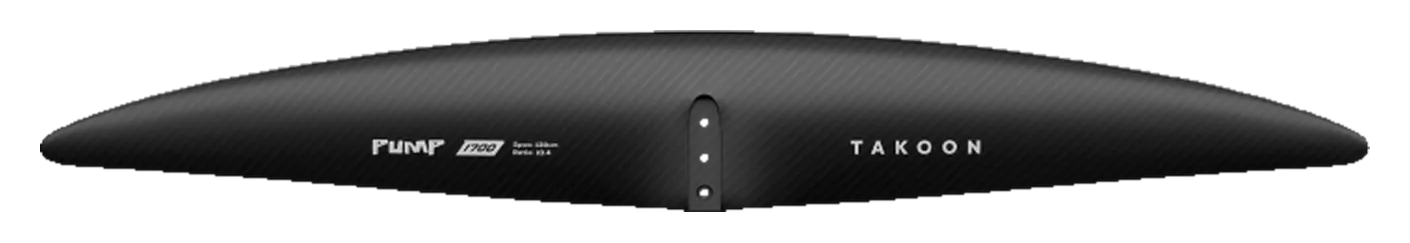

Takoon Pump Front Wing 1700

1,700area, cm²
1,330span, mm
10.40aspect ratio
Highaspect · AR 9.5 – 11.5

Family Pump Chord 182 mm Brand’s category Pump / dock Disciplines pump, sup

Drawn to scale · the closest current wings

true relative scale

The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Axis PNG (Pump and Glide) 1300, is already drawn over it. Select a numbered wing to draw it — up to three at a time.

3GONG Sirus V3 XLno outlineSpecs · table ↓

Takoon Pump Front Wing 1700 · 1,330 mm span · traced from the manufacturer’s plan view · drawn nose-up, wings aligned on the mid-point of the root chord (the dotted line). ▬ Axis PNG (Pump and Glide) 1300 · 1,300 mm

The Pump Front Wing runs 3 sizes, 1,500–1,900 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.

Its 1,330 mm span is 13% wider than typical for the area — the median across the 71 current wings within 10% of its size is 1,180 mm.

Closest wings from other brands

Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.

Current wings from other brands within ±5% of area and ±8% of aspect ratio of the Takoon Pump Front Wing 1700, closest first.
Brand	Wing	Area cm²	Δ area	Aspect ratio	Δ AR	Span mm	Band
Axis	PNG (Pump and Glide) 1300	1,712	+0.7%	9.94	-4.4%	1,300	High aspect
GONG	Trail V3 Atmo XL (Team / Carbon HM)	1,650	-2.9%	10.10	-2.9%	1,290	High aspect
GONG	Sirus V3 XL	1,700	+0.0%	10.90	+4.8%	1,360	High aspect
GONG	Sirus V3 Atmo XL (Perf / fiberglass)	1,691	-0.5%	10.90	+4.8%	1,360	High aspect
GONG	Sirus V3 Atmo XL (Team / Carbon HM)	1,650	-2.9%	11.00	+5.8%	1,350	High aspect
Axis	PNG V2 1300	1,632	-4.0%	10.36	-0.4%	1,300	High aspect

Specifications

Every figure is Takoon's own, read from the source linked in the last row, converted to area in cm² and span in mm.
Family	Pump
Size	1700
Area, cm²	1,700
Area basis	unknown
Span, mm	1,330
Chord, mm	182
Aspect ratio	10.40
Band	High aspect
Brand’s category	Pump / dock
Disciplines	pump, sup
Construction	—
Model year	—
Source	manufacturer

The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.

Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
