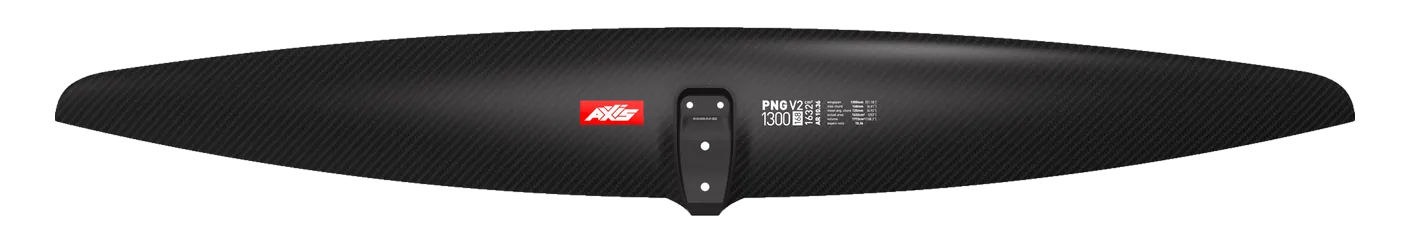

Axis PNG V2 1300
- 1,632area, cm²
- 1,300span, mm
- 10.36aspect ratio
- Highaspect · AR 9.5 – 11.5
Family PNG V2 Area basis flat Chord 168 mm Brand’s category Pump / dock Disciplines downwind, pump, sup, wing UHM carbon reinforced · 2025-2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the GONG Trail V3 Atmo XL (Team / Carbon HM), is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The PNG V2 runs 3 sizes, 1,632–1,803 cm², and changes proportion as it grows: aspect ratio runs 8.0 at one end of the range to 11.0 at the other, so its sizes differ in shape as well as in area.
Its 1,300 mm span is 10% wider than typical for the area — the median across the 69 current wings within 10% of its size is 1,180 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| GONG | Trail V3 Atmo XL (Team / Carbon HM) | 1,650 | +1.1% | 10.10 | -2.5% | 1,290 | High aspect |
| Code Foils | Kanga Series Front Wing 1600 | 1,600 | -2.0% | 10.60 | +2.3% | 1,300 | High aspect |
| F-One | JAM HM Carbon 1600 | 1,600 | -2.0% | 10.20 | -1.5% | 1,280 | High aspect |
| GONG | Sirus V3 Atmo XL (Perf / fiberglass) | 1,691 | +3.6% | 10.90 | +5.2% | 1,360 | High aspect |
| AFS | Enduro GLT Front Wing 1600 | 1,600 | -2.0% | 11.00 | +6.2% | 1,323 | High aspect |
| GONG | Sirus V3 Atmo XL (Team / Carbon HM) | 1,650 | +1.1% | 11.00 | +6.2% | 1,350 | High aspect |
| GONG | Sirus V3 XL | 1,700 | +4.2% | 10.90 | +5.2% | 1,360 | High aspect |
| Takoon | Pump Front Wing 1700 | 1,700 | +4.2% | 10.40 | +0.4% | 1,330 | High aspect |
Specifications
| Family | PNG V2 |
|---|---|
| Size | PNG V2 1300 |
| Area, cm² | 1,632 |
| Area basis | flat |
| Span, mm | 1,300 |
| Chord, mm | 168 |
| Aspect ratio | 10.36 |
| Band | High aspect |
| Brand’s category | Pump / dock |
| Disciplines | downwind, pump, sup, wing |
| Construction | UHM carbon reinforced |
| Model year | 2025-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
