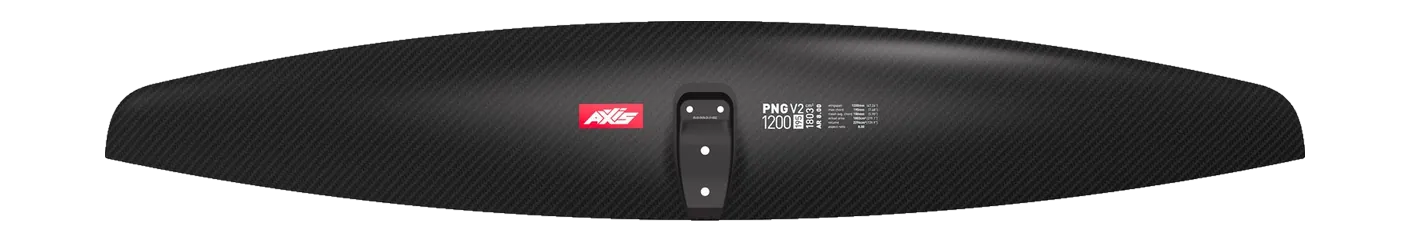

Axis PNG V2 1200
- 1,803area, cm²
- 1,200span, mm
- 8.00aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family PNG V2 Area basis flat Chord 195 mm Brand’s category Pump / dock Disciplines downwind, pump, sup, wing UHM carbon reinforced · 2025-2026
No current wing from another brand is within the tolerances; the nearest are drawn instead, ranked closest first. The Takoon X-Glide V2 Front Wing 1700 (#1) is already over it. Select a numbered wing to draw it — up to three at a time.
The PNG V2 runs 3 sizes, 1,632–1,803 cm², and changes proportion as it grows: aspect ratio runs 8.0 at one end of the range to 11.0 at the other, so its sizes differ in shape as well as in area.
Its 1,200 mm span is 7% narrower than typical for the area — the median across the 62 current wings within 10% of its size is 1,285 mm.
Closest wings from other brands
No current wing from another brand is within ±5% of area and ±8% of aspect ratio of this one.
The nearest current wings
None of these is within the tolerances above — each misses on area, on aspect ratio, or on both, by up to 1.7× the tolerance.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Takoon | X-Glide V2 Front Wing 1700 | 1,700 | -5.7% | 7.20 | -10.0% | 1,100 | Mid-low aspect |
| Armstrong | APF (All-round Pump Foil) APF1675 | 1,675 | -7.1% | 8.60 | +7.5% | 1,202 | Mid aspect |
| AFS | Evo Front Wing 1650 | 1,650 | -8.5% | 7.50 | -6.2% | 1,110 | Mid-low aspect |
Specifications
| Family | PNG V2 |
|---|---|
| Size | PNG V2 1200 |
| Area, cm² | 1,803 |
| Area basis | flat |
| Span, mm | 1,200 |
| Chord, mm | 195 |
| Aspect ratio | 8.00 |
| Band | Mid-low aspect |
| Brand’s category | Pump / dock |
| Disciplines | downwind, pump, sup, wing |
| Construction | UHM carbon reinforced |
| Model year | 2025-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
