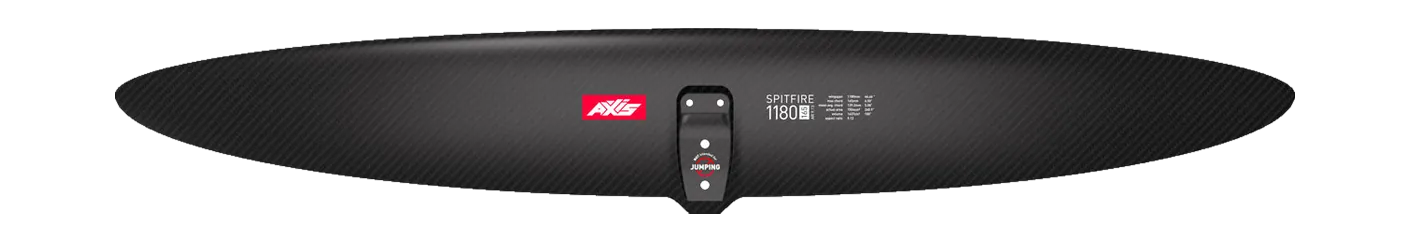

Axis Spitfire 1180
- 1,554area, cm²
- 1,180span, mm
- 9.13aspect ratio
- Midaspect · AR 8.5 – 9.5
Family Spitfire Area basis flat Chord 165 mm Brand’s category Surf / carve Disciplines prone carbon · 2025-2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Slingshot One-Lock Glide 1525, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Spitfire runs 10 sizes, 628–1,554 cm², and changes proportion as it grows: aspect ratio runs 6.1 at one end of the range to 9.1 at the other, so its sizes differ in shape as well as in area.
Its 1,180 mm span is 4% wider than typical for the area — the median across the 75 current wings within 10% of its size is 1,130 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Slingshot | One-Lock Glide 1525 | 1,525 | -1.9% | 9.00 | -1.4% | 1,169 | Mid aspect |
| Unifoil | Evolution 235 | 1,516 | -2.4% | 9.40 | +3.0% | 1,191 | Mid aspect |
| Code Foils | S Series Front Wing 1540S | 1,540 | -0.9% | 9.50 | +4.1% | 1,210 | Mid aspect |
| Takoon | Pump One Front Wing 1600 | 1,600 | +3.0% | 9.15 | +0.2% | 1,210 | Mid aspect |
| GONG | Curve H V3 FG 3XL | 1,520 | -2.2% | 8.40 | -8.0% | 1,130 | Mid-low aspect |
Specifications
| Family | Spitfire |
|---|---|
| Size | Spitfire 1180 |
| Area, cm² | 1,554 |
| Area basis | flat |
| Span, mm | 1,180 |
| Chord, mm | 165 |
| Aspect ratio | 9.13 |
| Band | Mid aspect |
| Brand’s category | Surf / carve |
| Disciplines | prone |
| Construction | carbon |
| Model year | 2025-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
