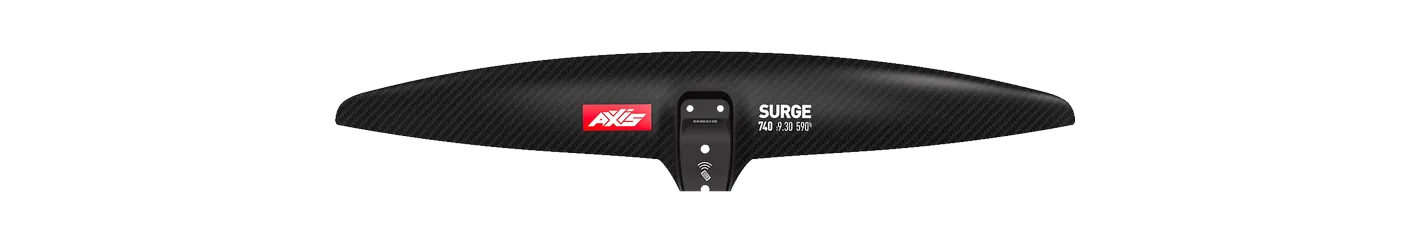

Axis Surge Surge 740 hydrofoil front wing: 590 cm², 740 mm span, aspect ratio 9.30, with its closest equivalents from other brands within ±5% area and ±8% aspect ratio. Figures from Axis's own published specifications.
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a match inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| GONG | Ypra Slalom V3 Atmo XS | 600 | +1.7% | 8.90 | -4.3% | 730 | C3 Mid aspect |
| Code Foils | S Series Front Wing 615S | 615 | +4.2% | 9.50 | +2.2% | 765 | C3 Mid aspect |
| GONG | Fluid V3 Atmo XXS | 610 | +3.4% | 8.70 | -6.5% | 730 | C3 Mid aspect |
| Family | Surge |
|---|---|
| Size | Surge 740 |
| Area, cm² | 590 |
| Area basis | flat |
| Span, mm | 740 |
| Chord, mm | 112 |
| Aspect ratio | 9.30 |
| Band | C3 Mid aspect |
| Brand files it under | Surf / carve |
| Disciplines | prone, wing, parawing, kite |
| Construction | carbon |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
See Axis on the plot →Data current to August 2026. Fast Bobby is the researcher, never the reviewer: every figure above is the manufacturer's published claim, converted to comparable units, and nothing here is a riding impression.
