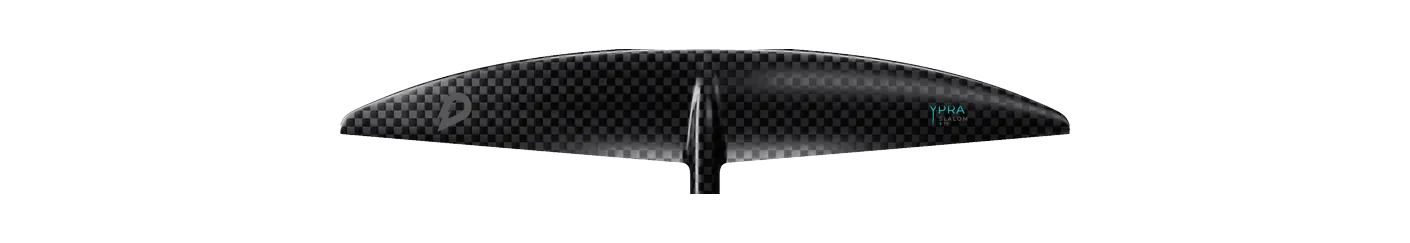

GONG Ypra Slalom V3 Atmo XS
- 600area, cm²
- 730span, mm
- 8.90aspect ratio
- Midaspect · AR 8.5 – 9.5
Family Ypra Chord 116 mm Brand’s category Race / freerace Disciplines wing, kite, race Pro Team / 3K Texalium clear carbon prepreg · 2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Axis Surge 740, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Ypra Slalom V3 Atmo runs 5 sizes, 500–900 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 730 mm span is typical for the area: the median across the 82 current wings within 10% of its size is 730 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Axis | Surge 740 | 590 | -1.7% | 9.30 | +4.5% | 740 | Mid aspect |
| Lift Foils | 92 Havoc Front Wing | 594 | -1.0% | 8.50 | -4.5% | 711 | Mid-low aspect |
| Naish | Siren MA Front Wing 600 | 600 | +0.0% | 8.50 | -4.5% | 714 | Mid-low aspect |
| Slingshot | One-Lock Glide 625 | 625 | +4.2% | 8.40 | -5.6% | 724 | Mid-low aspect |
| Code Foils | S Series Front Wing 615S | 615 | +2.5% | 9.50 | +6.7% | 765 | Mid aspect |
Specifications
| Family | Ypra |
|---|---|
| Size | XS |
| Area, cm² | 600 |
| Area basis | unknown |
| Span, mm | 730 |
| Chord, mm | 116 |
| Aspect ratio | 8.90 |
| Band | Mid aspect |
| Brand’s category | Race / freerace |
| Disciplines | wing, kite, race |
| Construction | Pro Team / 3K Texalium clear carbon prepreg |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
