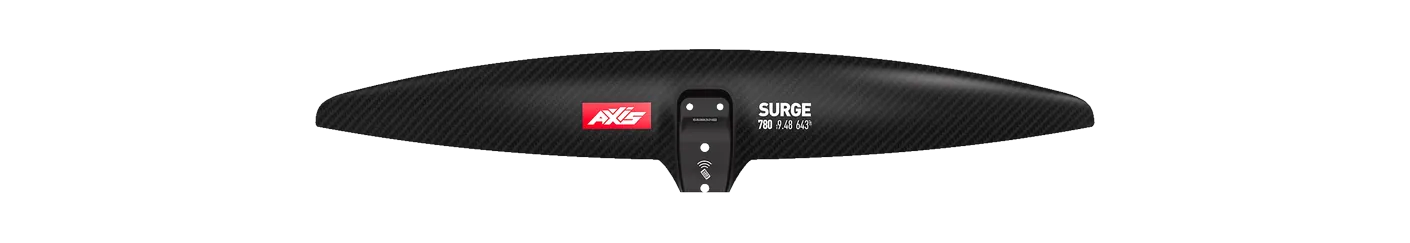

Axis Surge 780

643area, cm²
780span, mm
9.48aspect ratio
Midaspect · AR 8.5 – 9.5

Family Surge Area basis flat Chord 109 mm Brand’s category Surf / carve Disciplines prone, wing, parawing, kite carbon · 2026

Drawn to scale · the closest current wings

true relative scale

The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Sabfoil Razor PRO 775, is already drawn over it. Select a numbered wing to draw it — up to three at a time.

3North Sonar HA650no outline5Code Foils S Series Front Wing 615Sno outlineSpecs · table ↓

Axis Surge 780 · 780 mm span · traced from the manufacturer’s plan view · drawn nose-up, wings aligned on the mid-point of the root chord (the dotted line). ▬ Sabfoil Razor PRO 775 · 780 mm

The Surge runs 8 sizes, 590–1,199 cm²; aspect ratio moves 9.3–11.0 across the range.

Its 780 mm span is typical for the area: the median across the 97 current wings within 10% of its size is 780 mm.

Closest wings from other brands

Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.

Current wings from other brands within ±5% of area and ±8% of aspect ratio of the Axis Surge 780, closest first.
Brand	Wing	Area cm²	Δ area	Aspect ratio	Δ AR	Span mm	Band
Sabfoil	Razor PRO 775	631	-1.9%	9.64	+1.7%	780	High aspect
AFS	Silk V2 Front Wing 650	650	+1.1%	9.00	-5.1%	765	Mid aspect
North	Sonar HA650	650	+1.1%	10.10	+6.5%	810	High aspect
GONG	Ypra Race V3 670 cm²	670	+4.2%	9.90	+4.4%	820	High aspect
Code Foils	S Series Front Wing 615S	615	-4.4%	9.50	+0.2%	765	Mid aspect
Naish	Jet HA Front Wing 640	640	-0.5%	10.20	+7.6%	810	High aspect
Duotone	Crest D/LAB 675	675	+5.0%	9.30	-1.9%	790	Mid aspect

Specifications

Every figure is Axis's own, read from the source linked in the last row, converted to area in cm² and span in mm.
Family	Surge
Size	Surge 780
Area, cm²	643
Area basis	flat
Span, mm	780
Chord, mm	109
Aspect ratio	9.48
Band	Mid aspect
Brand’s category	Surf / carve
Disciplines	prone, wing, parawing, kite
Construction	carbon
Model year	2026
Source	manufacturer

The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.

Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
