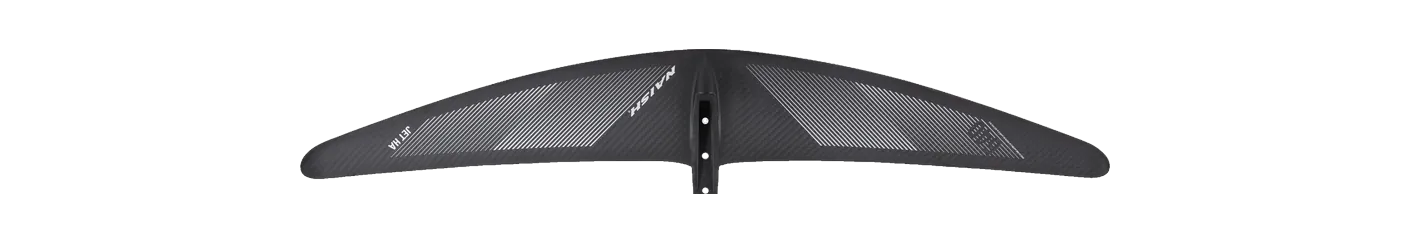

Naish Jet HA Front Wing 640
- 640area, cm²
- 810span, mm
- 10.20aspect ratio
- Highaspect · AR 9.5 – 11.5
Family Jet HA Area basis projected Brand’s category Glide / high aspect Disciplines wing, prone, sup, downwind, kite carbon/glass composite · 2024-2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Axis ART v2 819, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Jet HA Front Wing runs 7 sizes, 640–1,840 cm², and changes proportion as it grows: aspect ratio runs 6.8 at one end of the range to 10.2 at the other, so its sizes differ in shape as well as in area.
Its 810 mm span is 4% wider than typical for the area — the median across the 98 current wings within 10% of its size is 780 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Axis | ART v2 819 | 647 | +1.1% | 9.98 | -2.2% | 820 | High aspect |
| GONG | Ypra Race Micro V3 Atmo 630 cm² | 630 | -1.6% | 10.40 | +2.0% | 809 | High aspect |
| North | Sonar HA650 | 650 | +1.6% | 10.10 | -1.0% | 810 | High aspect |
| Unifoil | Progression 100 | 645 | +0.8% | 10.50 | +2.9% | 824 | High aspect |
| Duotone | Glide 2.0 D/LAB 620 | 620 | -3.1% | 10.30 | +1.0% | 800 | High aspect |
| Sabfoil | Razor PRO 775 | 631 | -1.4% | 9.64 | -5.5% | 780 | High aspect |
| Code Foils | S Series Front Wing 615S | 615 | -3.9% | 9.50 | -6.9% | 765 | Mid aspect |
| Axis | Surge 780 | 643 | +0.5% | 9.48 | -7.1% | 780 | Mid aspect |
| GONG | Ypra Race V3 670 cm² | 670 | +4.7% | 9.90 | -2.9% | 820 | High aspect |
Specifications
| Family | Jet HA |
|---|---|
| Size | Jet HA 640 |
| Area, cm² | 640 |
| Area basis | projected |
| Span, mm | 810 |
| Chord, mm | — |
| Aspect ratio | 10.20 |
| Band | High aspect |
| Brand’s category | Glide / high aspect |
| Disciplines | wing, prone, sup, downwind, kite |
| Construction | carbon/glass composite |
| Model year | 2024-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
