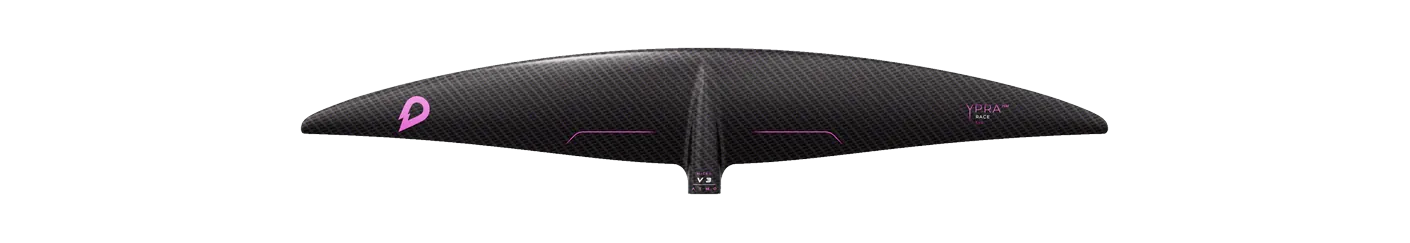

GONG Ypra Race Micro V3 Atmo 630 cm² hydrofoil front wing: 630 cm², 809 mm span, aspect ratio 10.40, with its closest equivalents from other brands within ±5% area and ±8% aspect ratio. Figures from GONG's own published specifications.
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a match inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Duotone | Glide 2.0 D/LAB 620 | 620 | -1.6% | 10.30 | -1.0% | 800 | C4 High aspect |
| Unifoil | Progression 100 Progression 100 | 645 | +2.4% | 10.50 | +1.0% | 824 | C4 High aspect |
| Naish | Jet HA Front Wing Jet HA 640 | 640 | +1.6% | 10.20 | -1.9% | 810 | C4 High aspect |
| North | Sonar HA650 HA650 | 650 | +3.2% | 10.10 | -2.9% | 810 | C4 High aspect |
| Axis | ART v2 ART v2 819 | 647 | +2.7% | 9.98 | -4.0% | 820 | C4 High aspect |
| Sabfoil | Razor PRO 775 Razor PRO 775 | 631 | +0.2% | 9.64 | -7.3% | 780 | C4 High aspect |
| Takoon | Flow Front Wing 600 | 600 | -4.8% | 10.70 | +2.9% | 800 | C4 High aspect |
| AFS | Enduro Front Wing Enduro 600 | 600 | -4.8% | 11.00 | +5.8% | 813 | C4 High aspect |
| Slingshot | One-Lock Flow 600 | 600 | -4.8% | 11.00 | +5.8% | 813 | C4 High aspect |
| Family | Ypra |
|---|---|
| Size | 630 cm² |
| Area, cm² | 630 |
| Area basis | projected |
| Span, mm | 809 |
| Chord, mm | — |
| Aspect ratio | 10.40 |
| Band | C4 High aspect |
| Brand files it under | Race / freerace |
| Disciplines | race, kite, wing |
| Construction | Pro Team / 3K Texalium clear carbon prepreg |
| Model year | 2026 |
| Source | manufacturer |
The brand publishes this aspect ratio but no span, so it cannot be checked against the wing's own geometry.
See GONG on the plot →Data current to August 2026. Fast Bobby is the researcher, never the reviewer: every figure above is the manufacturer's published claim, converted to comparable units, and nothing here is a riding impression.
