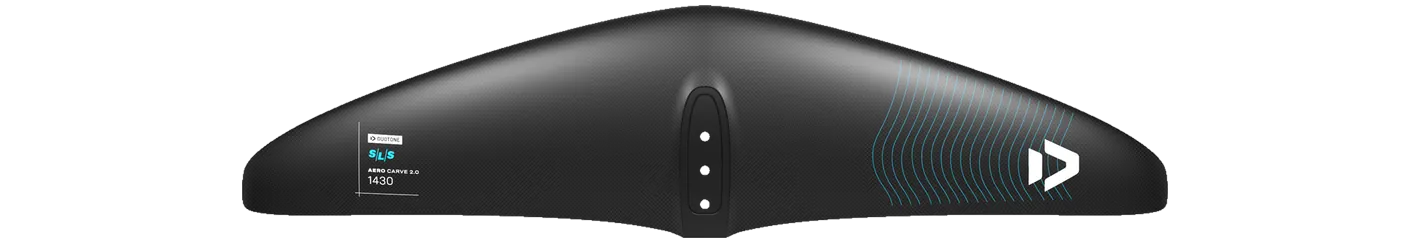

Duotone Aero Carve 2.0 SLS 1430
- Discontinuedsuperseded or no longer in the brand’s current range
- 1,430area, cm²
- 930span, mm
- 6.00aspect ratio
- Lowaspect · AR ≤ 6.0
Family Aero Carve Brand’s category Surf / carve Disciplines wing, prone, kite SLS · 2024
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the GONG X-Over V3 XL (#3), is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Aero Carve 2.0 SLS has run 3 sizes, 850–1,430 cm², including discontinued sizes; aspect ratio moves 6.0–6.7 across the range.
Its 930 mm span is 15% narrower than typical for the area — the median across the 94 current wings within 10% of its size is 1,100 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| KT Foiling | Instinct 1450 | 1,450 | +1.4% | 6.33 | +5.5% | 960 | Mid-low aspect |
| F-One | PHANTOM Carbon 1480 | 1,480 | +3.5% | 6.20 | +3.3% | 960 | Mid-low aspect |
| GONG | X-Over V3 XL | 1,400 | -2.1% | 6.40 | +6.7% | 950 | Mid-low aspect |
| GONG | X-Over V3 Atmo XL | 1,410 | -1.4% | 6.40 | +6.7% | 950 | Mid-low aspect |
| AFS | Flyer Front Wing 1500 | 1,500 | +4.9% | 6.30 | +5.0% | 955 | Mid-low aspect |
| North | Sonar MA1500v2 | 1,500 | +4.9% | 5.60 | -6.7% | 920 | Low aspect |
Specifications
| Family | Aero Carve |
|---|---|
| Size | 1430 |
| Area, cm² | 1,430 |
| Area basis | unknown |
| Span, mm | 930 |
| Chord, mm | — |
| Aspect ratio | 6.00 |
| Band | Low aspect |
| Brand’s category | Surf / carve |
| Disciplines | wing, prone, kite |
| Construction | SLS |
| Model year | 2024 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
