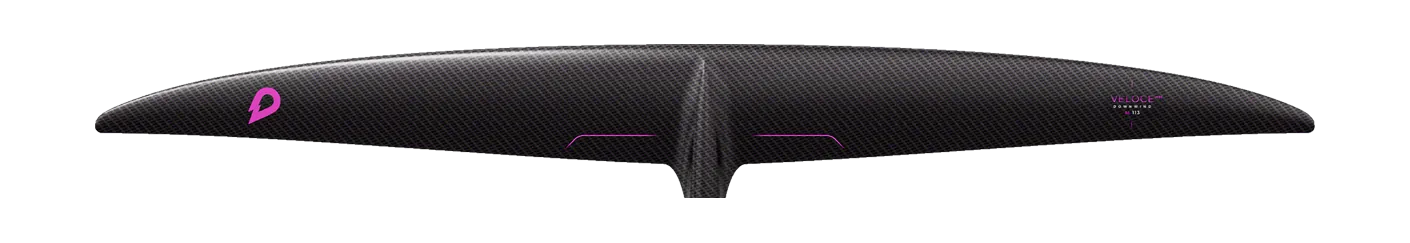

GONG Veloce DW V3 Atmo L hydrofoil front wing: 1,050 cm², 1,220 mm span, aspect ratio 14.10, with its closest equivalents from other brands within ±5% area and ±8% aspect ratio. Figures from GONG's own published specifications.
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a match inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| RRD | Flying Fish HA Front Wing Y31 1050 | 1,050 | +0.0% | 14.90 | +5.7% | 1,250 | C5 Very high aspect |
| Unifoil | Quest 160 Quest 160 | 1,032 | -1.7% | 13.40 | -5.0% | 1,175 | C5 Very high aspect |
| Code Foils | R Series Front Wing 1075R | 1,075 | +2.4% | 13.00 | -7.8% | 1,180 | C5 Very high aspect |
| Family | Veloce |
|---|---|
| Size | L |
| Area, cm² | 1,050 |
| Area basis | unknown |
| Span, mm | 1,220 |
| Chord, mm | 120 |
| Aspect ratio | 14.10 |
| Band | C5 Very high aspect |
| Brand files it under | Downwind |
| Disciplines | downwind, wing, parawing |
| Construction | Pro Team / 3K Texalium clear carbon prepreg |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
See GONG on the plot →Data current to August 2026. Fast Bobby is the researcher, never the reviewer: every figure above is the manufacturer's published claim, converted to comparable units, and nothing here is a riding impression.
