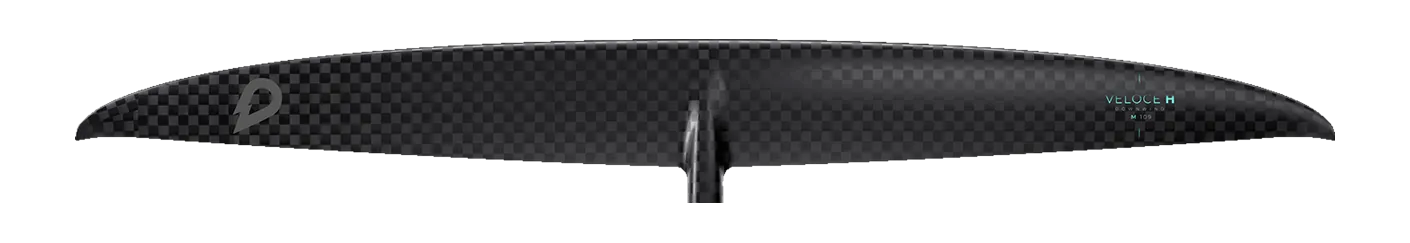

GONG Veloce HDW V3 XL
- 1,200area, cm²
- 1,260span, mm
- 13.30aspect ratio
- Very highaspect · AR 11.5 – 15.0
Family Veloce Area basis projected Chord 126 mm Brand’s category Downwind Disciplines downwind, wing, parawing Team / Carbon HM · 2025
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Sabfoil Leviathan PRO 1260, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Veloce HDW V3 runs 5 sizes, 600–1,200 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 1,260 mm span is 24% wider than typical for the area — the median across the 121 current wings within 10% of its size is 1,013 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Sabfoil | Leviathan PRO 1260 | 1,227 | +2.2% | 12.93 | -2.8% | 1,260 | Very high aspect |
| Code Foils | R Series Front Wing 1250R | 1,250 | +4.2% | 13.00 | -2.3% | 1,275 | Very high aspect |
Specifications
| Family | Veloce |
|---|---|
| Size | XL |
| Area, cm² | 1,200 |
| Area basis | projected |
| Span, mm | 1,260 |
| Chord, mm | 126 |
| Aspect ratio | 13.30 |
| Band | Very high aspect |
| Brand’s category | Downwind |
| Disciplines | downwind, wing, parawing |
| Construction | Team / Carbon HM |
| Model year | 2025 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
