GONG Ypra Race V3 540 cm²

GONG Ypra Race V3 540 cm²

Family Ypra Area basis projected Chord 103 mm Brand’s category Race / freerace Disciplines race, kite, wing Pro Team / Carbon HM · 2025

Drawn to scale · the closest current wings

true relative scale

The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the Takoon Flash Front Wing 530 (#2), is already drawn over it. Select a numbered wing to draw it — up to three at a time.

1North Sonar HA550no outline7North Sonar SF530no outlineSpecs · table ↓

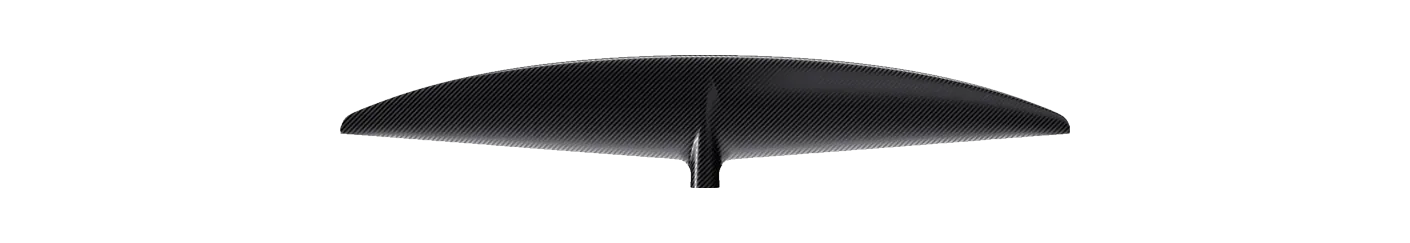

GONG Ypra Race V3 540 cm² · 730 mm span · traced from the manufacturer’s plan view · drawn nose-up, wings aligned on the mid-point of the root chord (the dotted line). ▬ Takoon Flash Front Wing 530 · 720 mm

The Ypra Race V3 runs 4 sizes, 430–670 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.

Its 730 mm span is 4% wider than typical for the area — the median across the 53 current wings within 10% of its size is 700 mm.

Closest wings from other brands

Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.

Current wings from other brands within ±5% of area and ±8% of aspect ratio of the GONG Ypra Race V3 540 cm², closest first.
BrandWingArea cm²Δ areaAspect ratioΔ ARSpan mmBand
NorthSonar HA550550+1.9%10.00+1.0%740High aspect
TakoonFlash Front Wing 530530-1.9%9.80-1.0%720High aspect
NaishExcalibur HA Front Wing 544544+0.7%10.20+3.0%745High aspect
CabrinhaFusion H-Series MkII H550550+1.9%9.52-3.8%690High aspect
AFSPure Race 560560+3.7%10.00+1.0%750High aspect
NaishMach-2 Front Wing 560560+3.7%10.04+1.4%750High aspect
NorthSonar SF530530-1.9%10.60+7.1%750High aspect

Specifications

Every figure is GONG's own, read from the source linked in the last row, converted to area in cm² and span in mm.
FamilyYpra
Size540 cm²
Area, cm²540
Area basisprojected
Span, mm730
Chord, mm103
Aspect ratio9.90
BandHigh aspect
Brand’s categoryRace / freerace
Disciplinesrace, kite, wing
ConstructionPro Team / Carbon HM
Model year2025
Sourcemanufacturer

The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.

Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
