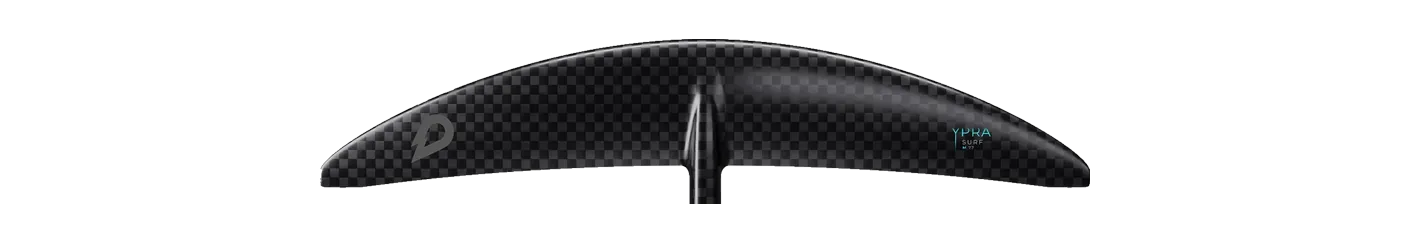

GONG Ypra Surf Carve V3 Atmo M
- 720area, cm²
- 770span, mm
- 8.20aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family Ypra Chord 124 mm Brand’s category Surf / carve Disciplines prone, wing, sup Pro Team / 3K Texalium clear carbon prepreg · 2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the Sabfoil Medusa PRO 769 (#4), is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Ypra Surf Carve V3 Atmo runs 4 sizes, 520–820 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 770 mm span is 6% narrower than typical for the area — the median across the 122 current wings within 10% of its size is 820 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| KT Foiling | Instinct 720 | 720 | +0.0% | 8.12 | -1.0% | 765 | Mid-low aspect |
| Code Foils | X Series Front Wing 700X | 700 | -2.8% | 8.20 | +0.0% | 755 | Mid-low aspect |
| Code Foils | X Series Front Wing 740X | 740 | +2.8% | 8.20 | +0.0% | 780 | Mid-low aspect |
| Sabfoil | Medusa PRO 769 | 700 | -2.8% | 8.44 | +2.9% | 769 | Mid-low aspect |
| Unifoil | Aggression 115 | 741 | +2.9% | 8.00 | -2.4% | 760 | Mid-low aspect |
| F-One | SUSHI UHM Carbon 740 | 740 | +2.8% | 7.70 | -6.1% | 755 | Mid-low aspect |
| KT Foiling | Nomad 700 | 700 | -2.8% | 8.70 | +6.1% | 780 | Mid aspect |
| Armstrong | MA Mk II (Mid Aspect) MA690 | 690 | -4.2% | 8.00 | -2.4% | 767 | Mid-low aspect |
| Cabrinha | Whippit 750 | 750 | +4.2% | 8.10 | -1.2% | 780 | Mid-low aspect |
| F-One | SK8 HM Carbon (T2) 750 | 750 | +4.2% | 8.00 | -2.4% | 775 | Mid-low aspect |
| Takoon | Flare Front Wing 750 | 750 | +4.2% | 8.30 | +1.2% | 775 | Mid-low aspect |
| Sabfoil | Razor PRO 825 | 746 | +3.6% | 8.84 | +7.8% | 820 | Mid aspect |
Specifications
| Family | Ypra |
|---|---|
| Size | M |
| Area, cm² | 720 |
| Area basis | unknown |
| Span, mm | 770 |
| Chord, mm | 124 |
| Aspect ratio | 8.20 |
| Band | Mid-low aspect |
| Brand’s category | Surf / carve |
| Disciplines | prone, wing, sup |
| Construction | Pro Team / 3K Texalium clear carbon prepreg |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
