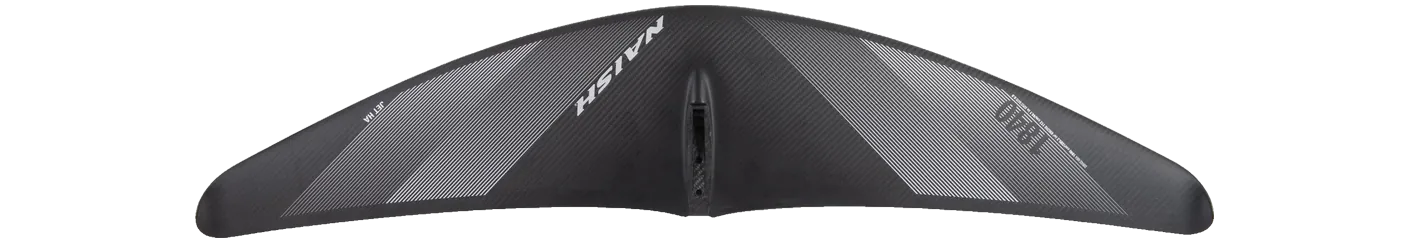

Naish Jet HA Front Wing 1840
- 1,840area, cm²
- 1,120span, mm
- 6.80aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family Jet HA Area basis projected Brand’s category Glide / high aspect Disciplines wing, prone, sup, downwind, kite carbon/glass composite · 2024-2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Axis BSC (Broad Spectrum Carve) 1060, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Jet HA Front Wing runs 7 sizes, 640–1,840 cm², and changes proportion as it grows: aspect ratio runs 6.8 at one end of the range to 10.2 at the other, so its sizes differ in shape as well as in area.
Its 1,120 mm span is 14% narrower than typical for the area — the median across the 62 current wings within 10% of its size is 1,295 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Axis | BSC (Broad Spectrum Carve) 1060 | 1,803 | -2.0% | 6.51 | -4.3% | 1,060 | Mid-low aspect |
| Duotone | Free 2.0 1900 | 1,900 | +3.3% | 6.80 | +0.0% | 1,140 | Mid-low aspect |
| F-One | PHANTOM Carbon 1780 | 1,780 | -3.3% | 6.40 | -5.9% | 1,070 | Mid-low aspect |
| AFS | Flyer Front Wing 1800 | 1,800 | -2.2% | 6.30 | -7.4% | 1,050 | Mid-low aspect |
| GONG | X-Over V3 XXL | 1,750 | -4.9% | 6.40 | -5.9% | 1,060 | Mid-low aspect |
Specifications
| Family | Jet HA |
|---|---|
| Size | Jet HA 1840 |
| Area, cm² | 1,840 |
| Area basis | projected |
| Span, mm | 1,120 |
| Chord, mm | — |
| Aspect ratio | 6.80 |
| Band | Mid-low aspect |
| Brand’s category | Glide / high aspect |
| Disciplines | wing, prone, sup, downwind, kite |
| Construction | carbon/glass composite |
| Model year | 2024-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
