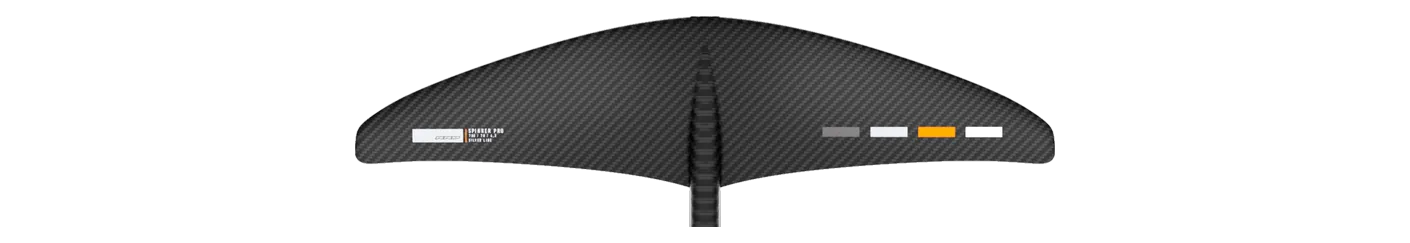

RRD Spinner Pro Front Wing Y31 780
- 780area, cm²
- 700span, mm
- 6.30aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family SPINNER PRO Brand’s category All-round / freeride Disciplines wing, prone Carbon
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Axis Spitfire 720, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Spinner Pro Front Wing Y31 runs 3 sizes, 530–780 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 700 mm span is 18% narrower than typical for the area — the median across the 122 current wings within 10% of its size is 850 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Axis | Spitfire 720 | 815 | +4.5% | 6.47 | +2.7% | 720 | Mid-low aspect |
Specifications
| Family | SPINNER PRO |
|---|---|
| Size | 780 |
| Area, cm² | 780 |
| Area basis | unknown |
| Span, mm | 700 |
| Chord, mm | — |
| Aspect ratio | 6.30 |
| Band | Mid-low aspect |
| Brand’s category | All-round / freeride |
| Disciplines | wing, prone |
| Construction | Carbon |
| Model year | — |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
