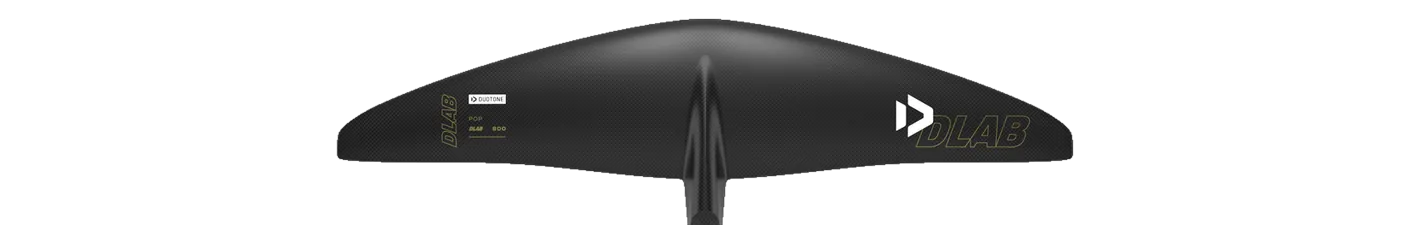

Duotone Pop D/LAB 800
- 800area, cm²
- 740span, mm
- 6.80aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family Pop Brand’s category Surf / carve Disciplines wing, kite D/LAB
The Pop D/LAB runs 3 sizes, 500–800 cm²; aspect ratio moves 6.8–7.2 across the range.
Its 740 mm span is 14% narrower than typical for the area — the median across the 130 current wings within 10% of its size is 860 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Axis | Spitfire 720 | 815 | +1.9% | 6.47 | -4.9% | 720 | Mid-low aspect |
| Lift Foils | 121 Havoc Front Wing | 774 | -3.2% | 7.00 | +2.9% | 737 | Mid-low aspect |
| RRD | Spinner Pro Front Wing Y31 780 | 780 | -2.5% | 6.30 | -7.4% | 700 | Mid-low aspect |
| F-One | PHANTOM S Carbon PHANTOM-S 840 | 840 | +5.0% | 6.50 | -4.4% | 740 | Mid-low aspect |
Specifications
| Family | Pop |
|---|---|
| Size | 800 |
| Area, cm² | 800 |
| Area basis | unknown |
| Span, mm | 740 |
| Chord, mm | — |
| Aspect ratio | 6.80 |
| Band | Mid-low aspect |
| Brand’s category | Surf / carve |
| Disciplines | wing, kite |
| Construction | D/LAB |
| Model year | — |
| Source | manufacturer · read 2026-09-29 |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
