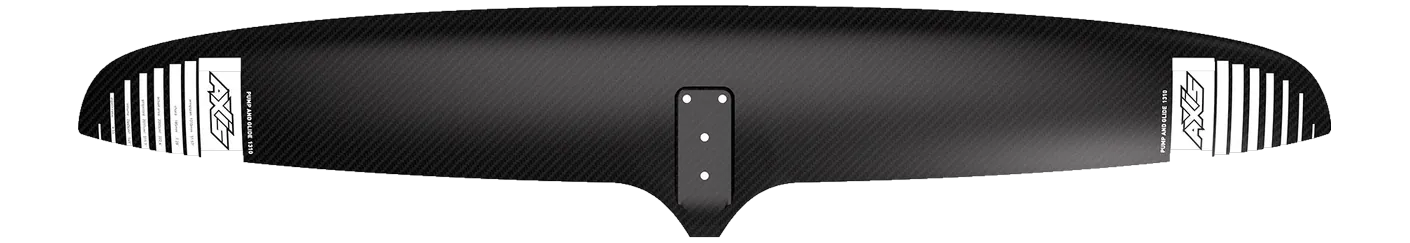

Axis PNG (Pump and Glide) 1310
- 2,080area, cm²
- 1,310span, mm
- 8.53aspect ratio
- Midaspect · AR 8.5 – 9.5
Family PNG Area basis flat Chord 185 mm Brand’s category Pump / dock Disciplines downwind, sup, prone, pump, wing, wake, kite carbon · 2025-2026
No current wing from another brand is within the tolerances; the nearest are drawn instead, ranked closest first. The Takoon Pump One Front Wing 2000 (#1) is already over it. Select a numbered wing to draw it — up to three at a time.
The PNG runs 6 sizes, 1,102–2,080 cm², and changes proportion as it grows: aspect ratio runs 6.8 at one end of the range to 9.9 at the other, so its sizes differ in shape as well as in area.
Its 1,310 mm span is 6% narrower than typical for the area — the median across the 37 current wings within 10% of its size is 1,400 mm.
Closest wings from other brands
No current wing from another brand is within ±5% of area and ±8% of aspect ratio of this one.
The nearest current wings
None of these is within the tolerances above — each misses on area, on aspect ratio, or on both, by up to 1.4× the tolerance.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Takoon | Pump One Front Wing 2000 | 2,000 | -3.8% | 9.25 | +8.4% | 1,360 | Mid aspect |
| GONG | Trail V3 XL | 1,940 | -6.7% | 9.40 | +10.2% | 1,350 | Mid aspect |
| ENSIS | STRIDE Front Wing 2050 | 2,050 | -1.4% | 9.50 | +11.4% | 1,400 | Mid aspect |
Specifications
| Family | PNG |
|---|---|
| Size | PNG 1310 |
| Area, cm² | 2,080 |
| Area basis | flat |
| Span, mm | 1,310 |
| Chord, mm | 185 |
| Aspect ratio | 8.53 |
| Band | Mid aspect |
| Brand’s category | Pump / dock |
| Disciplines | downwind, sup, prone, pump, wing, wake, kite |
| Construction | carbon |
| Model year | 2025-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
