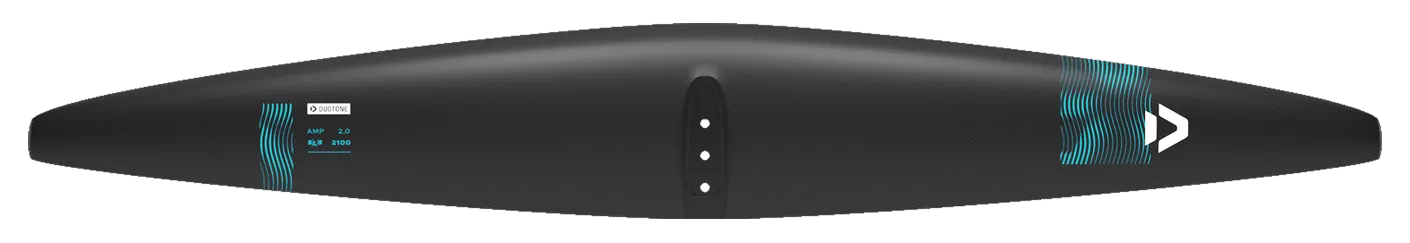

Duotone Amp 2.0 SLS 2100
- 2,100area, cm²
- 1,430span, mm
- 9.70aspect ratio
- Highaspect · AR 9.5 – 11.5
Family Amp Brand’s category Pump / dock Disciplines pump SLS · 2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the Takoon Pump One Front Wing 2000 (#3), is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Amp 2.0 SLS runs 3 sizes, 1,550–2,100 cm², and changes proportion as it grows: aspect ratio runs 9.7 at one end of the range to 13.2 at the other, so its sizes differ in shape as well as in area.
Its 1,430 mm span is 2% wider than typical for the area — the median across the 37 current wings within 10% of its size is 1,400 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| ENSIS | STRIDE Front Wing 2050 | 2,050 | -2.4% | 9.50 | -2.1% | 1,400 | Mid aspect |
| North | Sonar P2050 | 2,050 | -2.4% | 9.60 | -1.0% | 1,400 | High aspect |
| Takoon | Pump One Front Wing 2000 | 2,000 | -4.8% | 9.25 | -4.6% | 1,360 | Mid aspect |
Specifications
| Family | Amp |
|---|---|
| Size | 2100 |
| Area, cm² | 2,100 |
| Area basis | unknown |
| Span, mm | 1,430 |
| Chord, mm | — |
| Aspect ratio | 9.70 |
| Band | High aspect |
| Brand’s category | Pump / dock |
| Disciplines | pump |
| Construction | SLS |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
