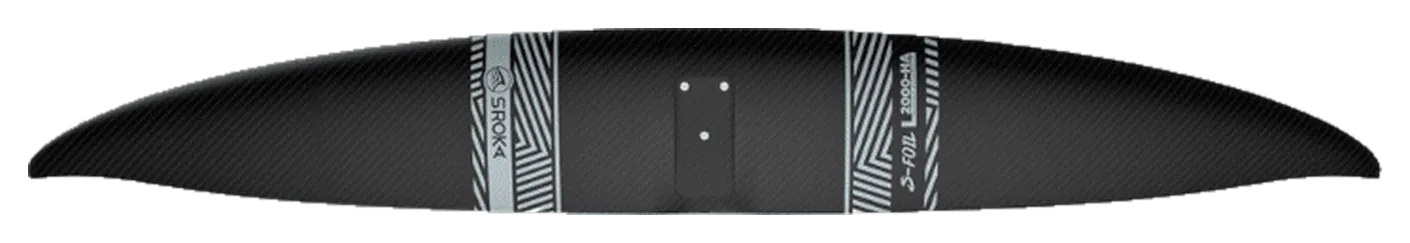

Sroka S-Foil 2000 L HA
- 2,000area, cm²
- 1,400span, mm
- 9.80aspect ratio
- Highaspect · AR 9.5 – 11.5
Family S-Foil High Aspect (HA) Brand’s category Glide / high aspect Disciplines pump
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the GONG Trail V3 Atmo XXL (Team / Carbon HM) (#2), is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The S-Foil High Aspect runs 7 sizes, 550–2,000 cm², and changes proportion as it grows: aspect ratio runs 7.5 at one end of the range to 9.8 at the other, so its sizes differ in shape as well as in area.
Its 1,400 mm span is 8% wider than typical for the area — the median across the 52 current wings within 10% of its size is 1,300 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| ENSIS | STRIDE Front Wing 2050 | 2,050 | +2.5% | 9.50 | -3.1% | 1,400 | Mid aspect |
| GONG | Trail V3 Atmo XXL (Team / Carbon HM) | 1,950 | -2.5% | 10.10 | +3.1% | 1,400 | High aspect |
| North | Sonar P2050 | 2,050 | +2.5% | 9.60 | -2.0% | 1,400 | High aspect |
| GONG | Trail V3 XL | 1,940 | -3.0% | 9.40 | -4.1% | 1,350 | Mid aspect |
| Takoon | Pump One Front Wing 2000 | 2,000 | +0.0% | 9.25 | -5.6% | 1,360 | Mid aspect |
| Duotone | Amp 2.0 SLS 2100 | 2,100 | +5.0% | 9.70 | -1.0% | 1,430 | High aspect |
| F-One | JAM HM Carbon 1900 | 1,900 | -5.0% | 10.50 | +7.1% | 1,400 | High aspect |
| RRD | Universal Moonfish Front Wing Y30 1900 | 1,900 | -5.0% | 9.60 | -2.0% | 1,350 | High aspect |
| Takoon | Pump Front Wing 1900 | 1,900 | -5.0% | 10.50 | +7.1% | 1,410 | High aspect |
Specifications
| Family | S-Foil High Aspect (HA) |
|---|---|
| Size | 2000 L HA |
| Area, cm² | 2,000 |
| Area basis | unknown |
| Span, mm | 1,400 |
| Chord, mm | — |
| Aspect ratio | 9.80 |
| Band | High aspect |
| Brand’s category | Glide / high aspect |
| Disciplines | pump |
| Construction | — |
| Model year | — |
| Source | manufacturer · read 2026-10-05 |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
