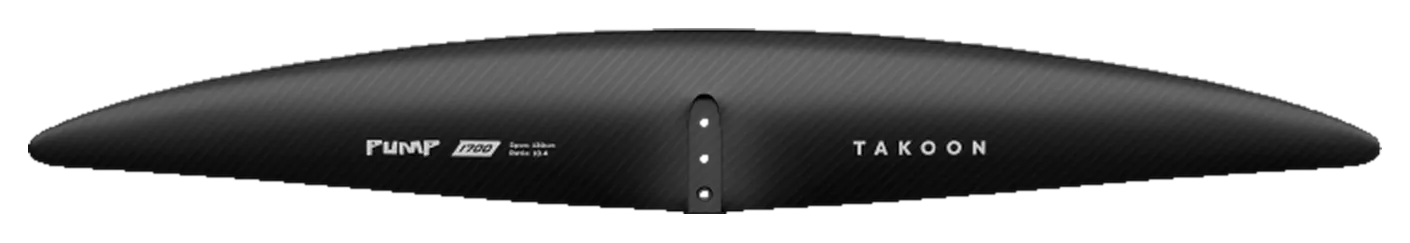

Takoon Pump Front Wing 1900

1,900area, cm²
1,410span, mm
10.50aspect ratio
Highaspect · AR 9.5 – 11.5

Family Pump Chord 193 mm Brand’s category Pump / dock Disciplines pump, sup

Drawn to scale · the closest current wings

true relative scale

The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the GONG Trail V3 Atmo XXL (Team / Carbon HM) (#2), is already drawn over it. Select a numbered wing to draw it — up to three at a time.

1F-One JAM HM Carbon 1900no outlineSpecs · table ↓

Takoon Pump Front Wing 1900 · 1,410 mm span · traced from the manufacturer’s plan view · drawn nose-up, wings aligned on the mid-point of the root chord (the dotted line). ▬ GONG Trail V3 Atmo XXL (Team / Carbon HM) · 1,400 mm

The Pump Front Wing runs 3 sizes, 1,500–1,900 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.

Its 1,410 mm span is 8% wider than typical for the area — the median across the 58 current wings within 10% of its size is 1,300 mm.

Closest wings from other brands

Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.

Current wings from other brands within ±5% of area and ±8% of aspect ratio of the Takoon Pump Front Wing 1900, closest first.
Brand	Wing	Area cm²	Δ area	Aspect ratio	Δ AR	Span mm	Band
F-One	JAM HM Carbon 1900	1,900	+0.0%	10.50	+0.0%	1,400	High aspect
GONG	Trail V3 Atmo XXL (Team / Carbon HM)	1,950	+2.6%	10.10	-3.8%	1,400	High aspect
GONG	Sirus V3 Atmo XXL (Team / Carbon HM)	1,950	+2.6%	11.00	+4.8%	1,460	High aspect
Sabfoil	Leviathan Blackbird The 1350	1,864	-1.9%	9.80	-6.7%	1,350	High aspect
Sabfoil	Leviathan 1350	1,870	-1.6%	9.75	-7.1%	1,350	High aspect

Specifications

Every figure is Takoon's own, read from the source linked in the last row, converted to area in cm² and span in mm.
Family	Pump
Size	1900
Area, cm²	1,900
Area basis	unknown
Span, mm	1,410
Chord, mm	193
Aspect ratio	10.50
Band	High aspect
Brand’s category	Pump / dock
Disciplines	pump, sup
Construction	—
Model year	—
Source	manufacturer

The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.

Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
