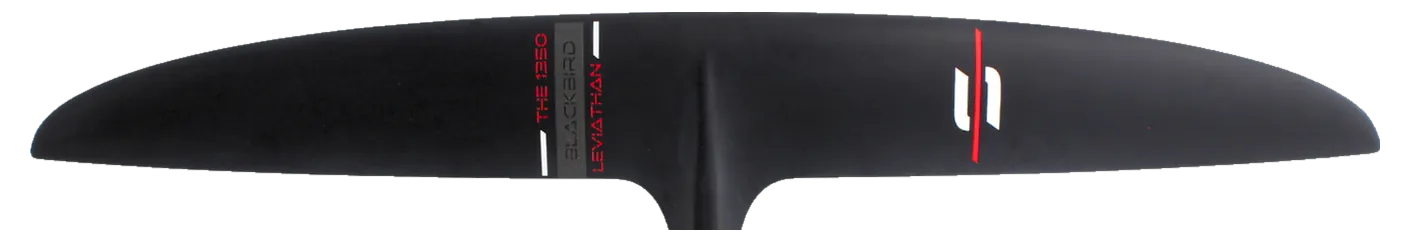

Sabfoil Leviathan Blackbird The 1350
- 1,864area, cm²
- 1,350span, mm
- 9.80aspect ratio
- Highaspect · AR 9.5 – 11.5
Family Leviathan Blackbird Chord 170 mm Brand’s category Downwind Disciplines wing, pump, sup, downwind full carbon monobloc · 2025-2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the RRD Universal Moonfish Front Wing Y30 1900, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Leviathan Blackbird runs 3 sizes, 1,330–1,864 cm², and changes proportion as it grows: aspect ratio runs 9.8 at one end of the range to 12.3 at the other, so its sizes differ in shape as well as in area.
Its 1,350 mm span is 4% wider than typical for the area — the median across the 62 current wings within 10% of its size is 1,300 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| RRD | Universal Moonfish Front Wing Y30 1900 | 1,900 | +1.9% | 9.60 | -2.0% | 1,350 | High aspect |
| North | Sonar P1800 | 1,800 | -3.4% | 9.40 | -4.1% | 1,300 | Mid aspect |
| Takoon | Pump One Front Wing 1800 | 1,800 | -3.4% | 9.25 | -5.6% | 1,290 | Mid aspect |
| Armstrong | APF (All-round Pump Foil) APF1880 | 1,880 | +0.9% | 9.20 | -6.1% | 1,302 | Mid aspect |
| GONG | Trail V3 XL | 1,940 | +4.1% | 9.40 | -4.1% | 1,350 | Mid aspect |
| F-One | JAM HM Carbon 1900 | 1,900 | +1.9% | 10.50 | +7.1% | 1,400 | High aspect |
| Takoon | Pump Front Wing 1900 | 1,900 | +1.9% | 10.50 | +7.1% | 1,410 | High aspect |
| Code Foils | Kanga Series Front Wing 1870 | 1,870 | +0.3% | 9.10 | -7.1% | 1,300 | Mid aspect |
| GONG | Trail V3 Atmo XXL (Team / Carbon HM) | 1,950 | +4.6% | 10.10 | +3.1% | 1,400 | High aspect |
Specifications
| Family | Leviathan Blackbird |
|---|---|
| Size | Leviathan Blackbird "The 1350" |
| Area, cm² | 1,864 |
| Area basis | unknown |
| Span, mm | 1,350 |
| Chord, mm | 170 |
| Aspect ratio | 9.80 |
| Band | High aspect |
| Brand’s category | Downwind |
| Disciplines | wing, pump, sup, downwind |
| Construction | full carbon monobloc |
| Model year | 2025-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
