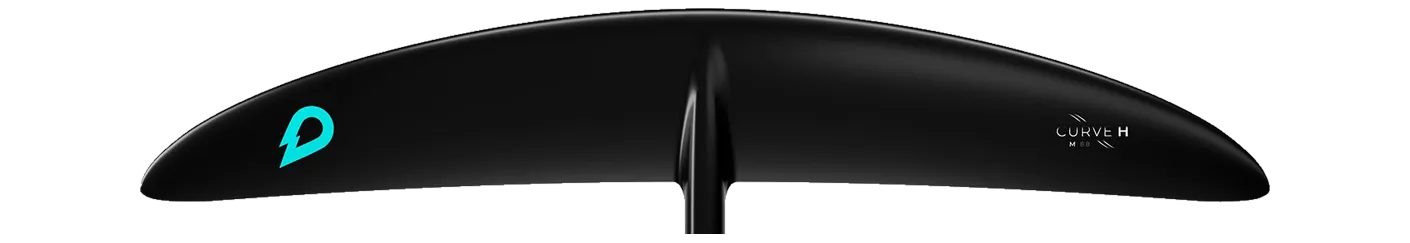

GONG Curve H V3 FG 3XL
- 1,520area, cm²
- 1,130span, mm
- 8.40aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family Curve Area basis projected Chord 173 mm Brand’s category All-round / freeride Disciplines wing, prone, sup, kite Perf / fiberglass · 2025
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the F-One SEVEN SEAS Carbon 1500, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Curve H V3 FG runs 8 sizes, 620–1,520 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 1,130 mm span is 2% wider than typical for the area — the median across the 73 current wings within 10% of its size is 1,110 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| F-One | SEVEN SEAS Carbon 1500 | 1,500 | -1.3% | 8.00 | -4.8% | 1,095 | Mid-low aspect |
| Sabfoil | Leviathan 1150 | 1,580 | +3.9% | 8.37 | -0.4% | 1,150 | Mid-low aspect |
| Slingshot | One-Lock Glide 1525 | 1,525 | +0.3% | 9.00 | +7.1% | 1,169 | Mid aspect |
| Duotone | Whizz SLS 1450 | 1,450 | -4.6% | 7.90 | -6.0% | 1,070 | Mid-low aspect |
Specifications
| Family | Curve |
|---|---|
| Size | 3XL |
| Area, cm² | 1,520 |
| Area basis | projected |
| Span, mm | 1,130 |
| Chord, mm | 173 |
| Aspect ratio | 8.40 |
| Band | Mid-low aspect |
| Brand’s category | All-round / freeride |
| Disciplines | wing, prone, sup, kite |
| Construction | Perf / fiberglass |
| Model year | 2025 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
