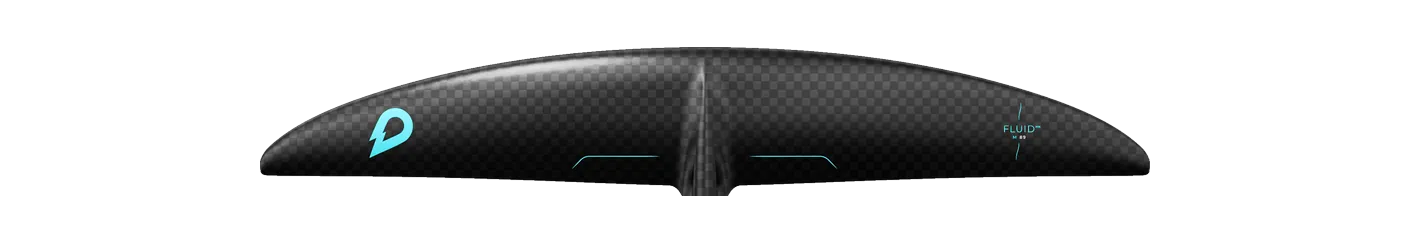

GONG Fluid V3 Atmo M (Team / Carbon HM)
- 910area, cm²
- 890span, mm
- 8.70aspect ratio
- Midaspect · AR 8.5 – 9.5
Family Fluid Chord 137 mm Brand’s category Surf / carve Disciplines wing, prone, sup, kite Team / Carbon HM · 2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the Duotone Crest D/LAB 925 (#2), is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Fluid V3 Atmo runs 9 sizes, 510–1,460 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 890 mm span is typical for the area: the median across the 138 current wings within 10% of its size is 900 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Unifoil | Progression 140 | 903 | -0.8% | 8.90 | +2.3% | 898 | Mid aspect |
| Duotone | Crest D/LAB 925 | 925 | +1.6% | 8.90 | +2.3% | 900 | Mid aspect |
| Slingshot | One-Lock Glide 925 | 925 | +1.6% | 8.80 | +1.1% | 899 | Mid aspect |
| KT Foiling | Instinct 920 | 920 | +1.1% | 8.41 | -3.3% | 880 | Mid-low aspect |
| North | Sonar SF930 | 930 | +2.2% | 8.80 | +1.1% | 900 | Mid aspect |
| AFS | Pure Fuselink Foil (monobloc front wing + fuselage) 900 | 900 | -1.1% | 9.20 | +5.7% | 900 | Mid aspect |
| Code Foils | X Series Front Wing 890X | 890 | -2.2% | 8.20 | -5.7% | 852 | Mid-low aspect |
| AFS | Evo Front Wing 950 | 950 | +4.4% | 8.10 | -6.9% | 880 | Mid-low aspect |
| AFS | Silk V2 Front Wing 950 | 950 | +4.4% | 9.00 | +3.4% | 925 | Mid aspect |
| Takoon | Flare Front Wing 950 | 950 | +4.4% | 8.30 | -4.6% | 890 | Mid-low aspect |
Specifications
| Family | Fluid |
|---|---|
| Size | M |
| Area, cm² | 910 |
| Area basis | unknown |
| Span, mm | 890 |
| Chord, mm | 137 |
| Aspect ratio | 8.70 |
| Band | Mid aspect |
| Brand’s category | Surf / carve |
| Disciplines | wing, prone, sup, kite |
| Construction | Team / Carbon HM |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
