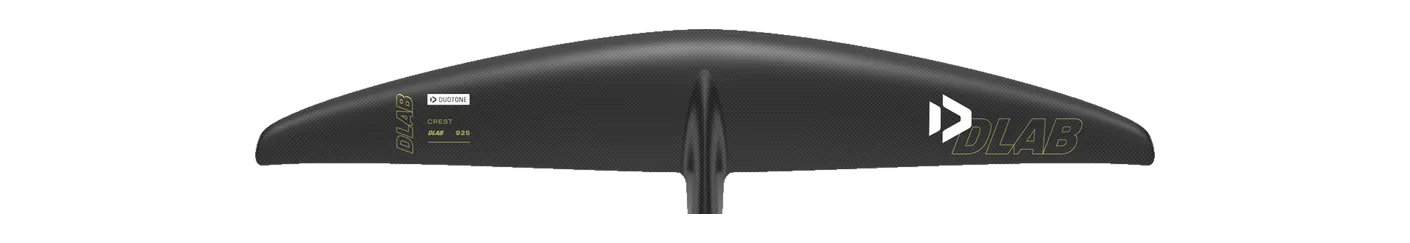

Duotone Crest D/LAB 925 hydrofoil front wing: 925 cm², 900 mm span, aspect ratio 8.90, with its closest equivalents from other brands within ±5% area and ±8% aspect ratio. Figures from Duotone's own published specifications.
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a match inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Slingshot | One-Lock Glide 925 | 925 | +0.0% | 8.80 | -1.1% | 899 | C3 Mid aspect |
| North | Sonar SF930 SF930 | 930 | +0.5% | 8.80 | -1.1% | 900 | C3 Mid aspect |
| Unifoil | Progression 140 Progression 140 | 903 | -2.4% | 8.90 | +0.0% | 898 | C3 Mid aspect |
| GONG | Ypra Slalom V3 Atmo L | 900 | -2.7% | 8.90 | +0.0% | 880 | C3 Mid aspect |
| AFS | Silk V2 Front Wing Silk 950 | 950 | +2.7% | 9.00 | +1.1% | 925 | C3 Mid aspect |
| GONG | Fluid V3 Atmo M | 910 | -1.6% | 8.70 | -2.2% | 890 | C3 Mid aspect |
| KT Foiling | Instinct 920 Instinct 920 | 920 | -0.5% | 8.41 | -5.5% | 880 | C2 Mid-low aspect |
| AFS | Pure Fuselink Foil (monobloc front wing + fuselage) Pure 900 | 900 | -2.7% | 9.20 | +3.4% | 900 | C3 Mid aspect |
| GONG | Curve H V3 FG M | 920 | -0.5% | 8.40 | -5.6% | 880 | C2 Mid-low aspect |
| GONG | Fluid H V3 FG M | 910 | -1.6% | 8.40 | -5.6% | 870 | C2 Mid-low aspect |
| RRD | Flying Fish Front Wing Y30 900 | 900 | -2.7% | 9.40 | +5.6% | 910 | C3 Mid aspect |
| GONG | Ypra Surf Fast V3 Atmo XL | 920 | -0.5% | 8.20 | -7.9% | 870 | C2 Mid-low aspect |
| ENSIS | FLOW ACE Front Wing 900 | 900 | -2.7% | 9.50 | +6.7% | 925 | C3 Mid aspect |
| Takoon | Flare Front Wing 950 | 950 | +2.7% | 8.30 | -6.7% | 890 | C2 Mid-low aspect |
| Axis | Surge Surge 950 | 949 | +2.6% | 9.52 | +7.0% | 950 | C4 High aspect |
| F-One | EAGLE HM Carbon EAGLE 890 | 890 | -3.8% | 9.60 | +7.9% | 925 | C4 High aspect |
| Code Foils | X Series Front Wing 890X | 890 | -3.8% | 8.20 | -7.9% | 852 | C2 Mid-low aspect |
| Unifoil | Aggression 150 Aggression 150 | 967 | +4.5% | 8.20 | -7.9% | 890 | C2 Mid-low aspect |
| Family | Crest |
|---|---|
| Size | 925 |
| Area, cm² | 925 |
| Area basis | unknown |
| Span, mm | 900 |
| Chord, mm | — |
| Aspect ratio | 8.90 |
| Band | C3 Mid aspect |
| Brand files it under | Surf / carve |
| Disciplines | wing, prone, tow |
| Construction | D/LAB |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
See Duotone on the plot →Data current to August 2026. Fast Bobby is the researcher, never the reviewer: every figure above is the manufacturer's published claim, converted to comparable units, and nothing here is a riding impression.
