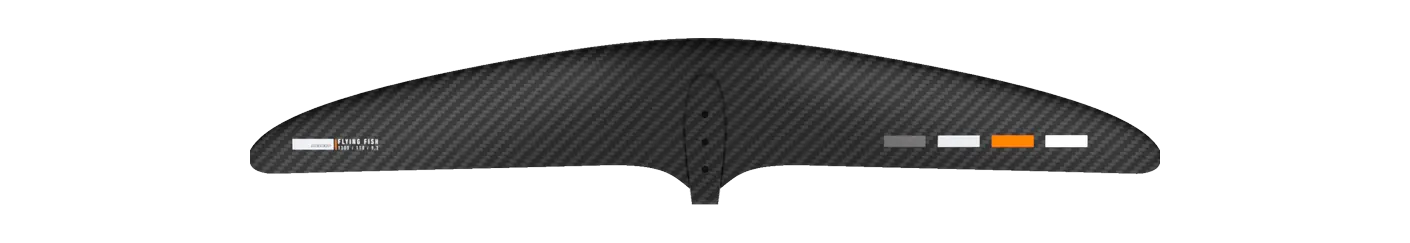

RRD Flying Fish Front Wing Y30 900
- 900area, cm²
- 910span, mm
- 9.40aspect ratio
- Midaspect · AR 8.5 – 9.5
Family FLYING FISH Brand’s category Downwind Disciplines wing, prone, downwind
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the AFS Pure Fuselink Foil (monobloc front wing + fuselage) 900 (#3), is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Flying Fish Front Wing Y30 runs 4 sizes, 750–1,300 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 910 mm span is 2% wider than typical for the area — the median across the 131 current wings within 10% of its size is 890 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| ENSIS | FLOW ACE Front Wing 900 | 900 | +0.0% | 9.50 | +1.1% | 925 | Mid aspect |
| F-One | EAGLE HM Carbon 890 | 890 | -1.1% | 9.60 | +2.1% | 925 | High aspect |
| AFS | Pure Fuselink Foil (monobloc front wing + fuselage) 900 | 900 | +0.0% | 9.20 | -2.1% | 900 | Mid aspect |
| Armstrong | HA (High Aspect) HA880 | 880 | -2.2% | 9.68 | +3.0% | 923 | High aspect |
| Unifoil | Evolution 135 | 871 | -3.2% | 9.40 | +0.0% | 903 | Mid aspect |
| Duotone | Crest D/LAB 925 | 925 | +2.8% | 8.90 | -5.3% | 900 | Mid aspect |
| GONG | Ypra Slalom V3 Atmo L | 900 | +0.0% | 8.90 | -5.3% | 880 | Mid aspect |
| Unifoil | Progression 140 | 903 | +0.3% | 8.90 | -5.3% | 898 | Mid aspect |
| Axis | ART v2 939 | 900 | +0.0% | 10.00 | +6.4% | 940 | High aspect |
| North | Sonar SF930 | 930 | +3.3% | 8.80 | -6.4% | 900 | Mid aspect |
| Slingshot | One-Lock Glide 925 | 925 | +2.8% | 8.80 | -6.4% | 899 | Mid aspect |
| GONG | Veloce V3 Atmo M | 890 | -1.1% | 10.10 | +7.4% | 950 | High aspect |
| Omen | Agent 900 | 900 | +0.0% | 10.10 | +7.4% | 954 | High aspect |
| GONG | Fluid V3 Atmo M (Team / Carbon HM) | 910 | +1.1% | 8.70 | -7.4% | 890 | Mid aspect |
Specifications
| Family | FLYING FISH |
|---|---|
| Size | 900 |
| Area, cm² | 900 |
| Area basis | unknown |
| Span, mm | 910 |
| Chord, mm | — |
| Aspect ratio | 9.40 |
| Band | Mid aspect |
| Brand’s category | Downwind |
| Disciplines | wing, prone, downwind |
| Construction | — |
| Model year | — |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
