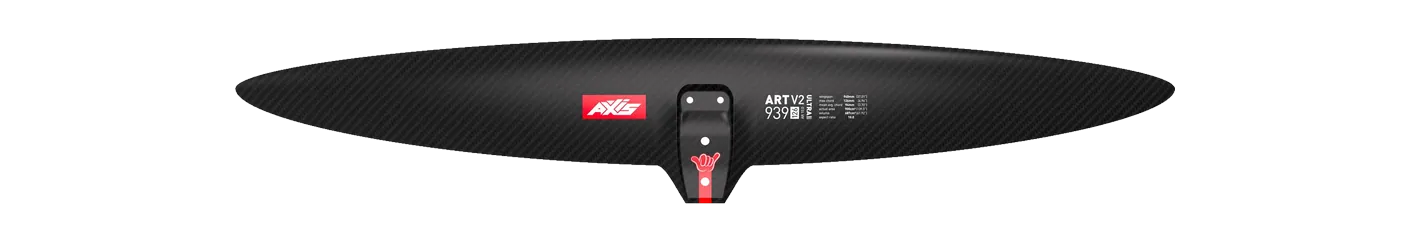

Axis ART v2 939
- 900area, cm²
- 940span, mm
- 10.00aspect ratio
- Highaspect · AR 9.5 – 11.5
Family ART v2 Area basis flat Chord 126 mm Brand’s category Glide / high aspect Disciplines wing, prone, downwind, sup UHM carbon reinforced · 2025-2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Omen Agent 900, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The ART v2 runs 5 sizes, 647–1,220 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 940 mm span is 6% wider than typical for the area — the median across the 131 current wings within 10% of its size is 890 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Omen | Agent 900 | 900 | +0.0% | 10.10 | +1.0% | 954 | High aspect |
| GONG | Veloce V3 Atmo M | 890 | -1.1% | 10.10 | +1.0% | 950 | High aspect |
| Duotone | Glide 2.0 D/LAB 900 | 900 | +0.0% | 10.20 | +2.0% | 960 | High aspect |
| Armstrong | HA (High Aspect) HA880 | 880 | -2.2% | 9.68 | -3.2% | 923 | High aspect |
| F-One | EAGLE HM Carbon 890 | 890 | -1.1% | 9.60 | -4.0% | 925 | High aspect |
| ENSIS | FLOW ACE Front Wing 900 | 900 | +0.0% | 9.50 | -5.0% | 925 | Mid aspect |
| GONG | Veloce Free Fly (FF) V3 Atmo M | 890 | -1.1% | 10.60 | +6.0% | 970 | High aspect |
| RRD | Flying Fish Front Wing Y30 900 | 900 | +0.0% | 9.40 | -6.0% | 910 | Mid aspect |
| Unifoil | Evolution 135 | 871 | -3.2% | 9.40 | -6.0% | 903 | Mid aspect |
| Takoon | Flow Front Wing 900 | 900 | +0.0% | 10.70 | +7.0% | 980 | High aspect |
| Sabfoil | Razor PRO 975 | 942 | +4.7% | 10.20 | +2.0% | 980 | High aspect |
| Naish | Excalibur HA Front Wing 944 | 944 | +4.9% | 10.20 | +2.0% | 982 | High aspect |
| AFS | Pure Fuselink Foil (monobloc front wing + fuselage) 900 | 900 | +0.0% | 9.20 | -8.0% | 900 | Mid aspect |
Specifications
| Family | ART v2 |
|---|---|
| Size | ART v2 939 |
| Area, cm² | 900 |
| Area basis | flat |
| Span, mm | 940 |
| Chord, mm | 126 |
| Aspect ratio | 10.00 |
| Band | High aspect |
| Brand’s category | Glide / high aspect |
| Disciplines | wing, prone, downwind, sup |
| Construction | UHM carbon reinforced |
| Model year | 2025-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
