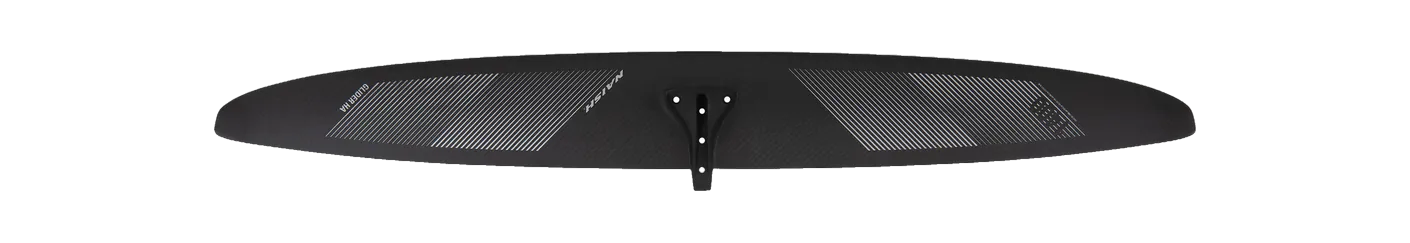

Naish Excalibur HA Front Wing 944
- 944area, cm²
- 982span, mm
- 10.20aspect ratio
- Highaspect · AR 9.5 – 11.5
Family Excalibur Area basis projected Brand’s category Glide / high aspect Disciplines downwind, wing, prone, sup HM carbon · 2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Sabfoil Razor PRO 975, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Excalibur HA Front Wing runs 5 sizes, 544–1,344 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 982 mm span is 8% wider than typical for the area — the median across the 130 current wings within 10% of its size is 906 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Sabfoil | Razor PRO 975 | 942 | -0.2% | 10.20 | +0.0% | 980 | High aspect |
| Sabfoil | Blackbird Razor 977 | 953 | +1.0% | 10.20 | +0.0% | 977 | High aspect |
| North | Sonar HA950 | 950 | +0.6% | 10.60 | +3.9% | 1,000 | High aspect |
| Lift Foils | 150 High Aspect X Front Wing | 968 | +2.5% | 10.10 | -1.0% | 991 | High aspect |
| Lift Foils | 150 Vario Front Wing | 968 | +2.5% | 10.10 | -1.0% | 991 | High aspect |
| KT Foiling | Atlas 960 | 960 | +1.7% | 10.80 | +5.9% | 1,020 | High aspect |
| Armstrong | HA (High Aspect) HA980 | 980 | +3.8% | 9.68 | -5.1% | 974 | High aspect |
| Axis | Surge 950 | 949 | +0.5% | 9.52 | -6.7% | 950 | High aspect |
| Code Foils | S Series Front Wing 980S | 980 | +3.8% | 9.50 | -6.9% | 965 | Mid aspect |
| Axis | ART v2 939 | 900 | -4.7% | 10.00 | -2.0% | 940 | High aspect |
| Duotone | Glide 2.0 D/LAB 900 | 900 | -4.7% | 10.20 | +0.0% | 960 | High aspect |
| ENSIS | FLOW ACE Front Wing 900 | 900 | -4.7% | 9.50 | -6.9% | 925 | Mid aspect |
| Omen | Agent 900 | 900 | -4.7% | 10.10 | -1.0% | 954 | High aspect |
| Takoon | Flow Front Wing 900 | 900 | -4.7% | 10.70 | +4.9% | 980 | High aspect |
| F-One | EAGLE HM Carbon 990 | 990 | +4.9% | 9.50 | -6.9% | 970 | Mid aspect |
| RRD | Flying Fish Front Wing Y30 900 | 900 | -4.7% | 9.40 | -7.8% | 910 | Mid aspect |
| AFS | Enduro Front Wing 900 | 900 | -4.7% | 11.00 | +7.8% | 994 | High aspect |
| Cabrinha | Prestige 905 | 905 | -4.1% | 11.00 | +7.8% | 1,000 | High aspect |
Specifications
| Family | Excalibur |
|---|---|
| Size | Excalibur 944 |
| Area, cm² | 944 |
| Area basis | projected |
| Span, mm | 982 |
| Chord, mm | — |
| Aspect ratio | 10.20 |
| Band | High aspect |
| Brand’s category | Glide / high aspect |
| Disciplines | downwind, wing, prone, sup |
| Construction | HM carbon |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
