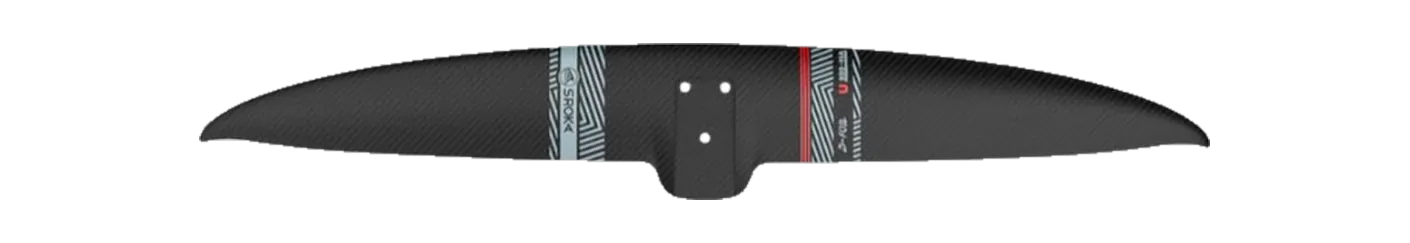

Sroka S-Foil UHA 930
- 930area, cm²
- 1,011span, mm
- 11.00aspect ratio
- Highaspect · AR 9.5 – 11.5
Family UHA Chord 118 mm Brand’s category Glide / high aspect Disciplines wing, downwind, prone, sup
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the North Sonar HA950, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The UHA runs 6 sizes, 700–1,550 cm²; aspect ratio moves 11.0–11.6 across the range.
Its 1,011 mm span is 12% wider than typical for the area — the median across the 148 current wings within 10% of its size is 901 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| North | Sonar HA950 | 950 | +2.2% | 10.60 | -3.6% | 1,000 | High aspect |
| Cabrinha | Prestige 905 | 905 | -2.7% | 11.00 | +0.0% | 1,000 | High aspect |
| Sabfoil | Leviathan PRO 1060 | 947 | +1.8% | 11.53 | +4.8% | 1,060 | Very high aspect |
| AFS | Enduro Front Wing 900 | 900 | -3.2% | 11.00 | +0.0% | 994 | High aspect |
| KT Foiling | Atlas 960 | 960 | +3.2% | 10.80 | -1.8% | 1,020 | High aspect |
| Takoon | Flow Front Wing 900 | 900 | -3.2% | 10.70 | -2.7% | 980 | High aspect |
| Duotone | Glide 3.0 D/LAB 950 | 950 | +2.2% | 11.70 | +6.4% | 1,050 | Very high aspect |
| GONG | Veloce Free Fly (FF) V3 Atmo M | 890 | -4.3% | 10.60 | -3.6% | 970 | High aspect |
| Duotone | Glide 2.0 D/LAB 900 | 900 | -3.2% | 10.20 | -7.3% | 960 | High aspect |
| Naish | Excalibur HA Front Wing 944 | 944 | +1.5% | 10.20 | -7.3% | 982 | High aspect |
| Sabfoil | Blackbird Razor 977 | 953 | +2.5% | 10.20 | -7.3% | 977 | High aspect |
| Sabfoil | Razor PRO 975 | 942 | +1.3% | 10.20 | -7.3% | 980 | High aspect |
Specifications
| Family | UHA |
|---|---|
| Size | UHA 930 |
| Area, cm² | 930 |
| Area basis | unknown |
| Span, mm | 1,011 |
| Chord, mm | 118 |
| Aspect ratio | 11.00 |
| Band | High aspect |
| Brand’s category | Glide / high aspect |
| Disciplines | wing, downwind, prone, sup |
| Construction | — |
| Model year | — |
| Source | manufacturer · read 2026-10-05 |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
