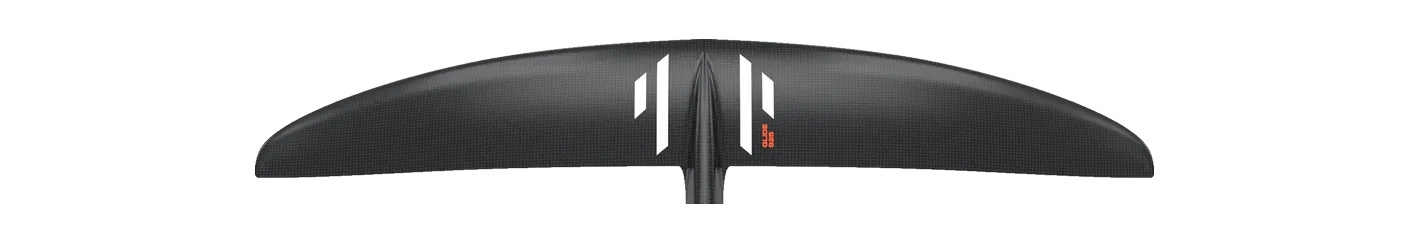

Slingshot One-Lock Glide 925
- 925area, cm²
- 899span, mm
- 8.80aspect ratio
- Midaspect · AR 8.5 – 9.5
Family One-Lock Glide Brand’s category Glide / high aspect Disciplines wing, prone, wake, pump carbon · 2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the Duotone Crest D/LAB 925 (#2), is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The One-Lock Glide runs 7 sizes, 625–1,525 cm²; aspect ratio moves 8.4–9.0 across the range.
Its 899 mm span is typical for the area: the median across the 134 current wings within 10% of its size is 902 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| North | Sonar SF930 | 930 | +0.5% | 8.80 | +0.0% | 900 | Mid aspect |
| Duotone | Crest D/LAB 925 | 925 | +0.0% | 8.90 | +1.1% | 900 | Mid aspect |
| GONG | Fluid V3 Atmo M (Team / Carbon HM) | 910 | -1.6% | 8.70 | -1.1% | 890 | Mid aspect |
| Unifoil | Progression 140 | 903 | -2.4% | 8.90 | +1.1% | 898 | Mid aspect |
| AFS | Silk V2 Front Wing 950 | 950 | +2.7% | 9.00 | +2.3% | 925 | Mid aspect |
| GONG | Ypra Slalom V3 Atmo L | 900 | -2.7% | 8.90 | +1.1% | 880 | Mid aspect |
| KT Foiling | Instinct 920 | 920 | -0.5% | 8.41 | -4.4% | 880 | Mid-low aspect |
| AFS | Pure Fuselink Foil (monobloc front wing + fuselage) 900 | 900 | -2.7% | 9.20 | +4.5% | 900 | Mid aspect |
| GONG | Curve H V3 FG M | 920 | -0.5% | 8.40 | -4.5% | 880 | Mid-low aspect |
| GONG | Fluid H V3 FG M | 910 | -1.6% | 8.40 | -4.5% | 870 | Mid-low aspect |
| Takoon | Flare Front Wing 950 | 950 | +2.7% | 8.30 | -5.7% | 890 | Mid-low aspect |
| RRD | Flying Fish Front Wing Y30 900 | 900 | -2.7% | 9.40 | +6.8% | 910 | Mid aspect |
| Code Foils | X Series Front Wing 890X | 890 | -3.8% | 8.20 | -6.8% | 852 | Mid-low aspect |
| GONG | Ypra Surf Fast V3 Atmo XL | 920 | -0.5% | 8.20 | -6.8% | 870 | Mid-low aspect |
| Unifoil | Aggression 150 | 967 | +4.5% | 8.20 | -6.8% | 890 | Mid-low aspect |
| ENSIS | FLOW ACE Front Wing 900 | 900 | -2.7% | 9.50 | +8.0% | 925 | Mid aspect |
| AFS | Evo Front Wing 950 | 950 | +2.7% | 8.10 | -8.0% | 880 | Mid-low aspect |
Specifications
| Family | One-Lock Glide |
|---|---|
| Size | 925 |
| Area, cm² | 925 |
| Area basis | unknown |
| Span, mm | 899 |
| Chord, mm | — |
| Aspect ratio | 8.80 |
| Band | Mid aspect |
| Brand’s category | Glide / high aspect |
| Disciplines | wing, prone, wake, pump |
| Construction | carbon |
| Model year | 2026 |
| Source | manufacturer · read 2026-08-13 |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
