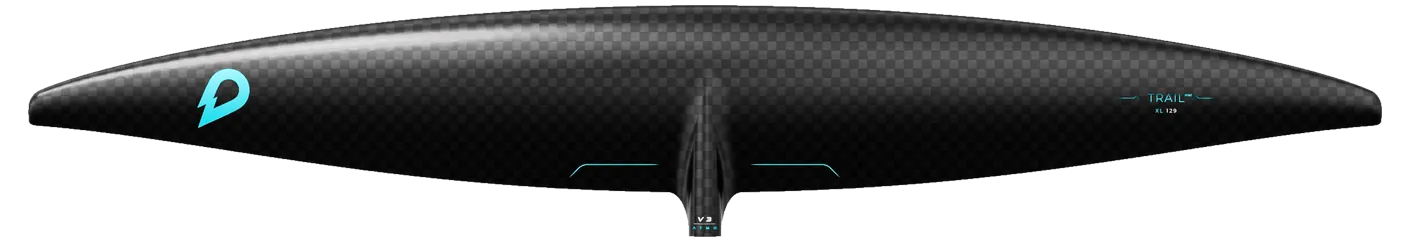

GONG Trail V3 Atmo 3XL
- 2,250area, cm²
- 1,510span, mm
- 10.10aspect ratio
- Highaspect · AR 9.5 – 11.5
Family Trail Chord 208 mm Brand’s category Pump / dock Disciplines pump Team / Carbon HM · 2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Duotone Amp SLS 2145, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Trail V3 Atmo runs 4 sizes, 1,350–2,250 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 1,510 mm span is 11% wider than typical for the area — the median across the 28 current wings within 10% of its size is 1,355 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Duotone | Amp SLS 2145 | 2,145 | -4.7% | 9.60 | -5.0% | 1,430 | High aspect |
Specifications
| Family | Trail |
|---|---|
| Size | 3XL |
| Area, cm² | 2,250 |
| Area basis | unknown |
| Span, mm | 1,510 |
| Chord, mm | 208 |
| Aspect ratio | 10.10 |
| Band | High aspect |
| Brand’s category | Pump / dock |
| Disciplines | pump |
| Construction | Team / Carbon HM |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
