Fast Bobby · wings · Lift Foils · discontinued

Lift Foils 150 Surf V2 Front Wing

Discontinuedsuperseded or no longer in the brand’s current range
968area, cm²
793span, mm
6.50aspect ratio
Mid-lowaspect · AR 6.0 – 8.5

Family Surf V2 (discontinued sizes) Brand’s category Surf / carve Disciplines prone, efoil, wing, downwind carbon · 2023

Drawn to scale · the closest current wings

true relative scale

The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the Sabfoil Sea Devil 780 Blackbird (#2), is already drawn over it. Select a numbered wing to draw it — up to three at a time.

1RRD Blaze LTE Front Wing Y30 950no outline3F-One PHANTOM Carbon 980no outline4F-One PHANTOM S Carbon PHANTOM-S 940no outline6Cabrinha Fusion X-Series MkII X930no outline8ENSIS PACER Front Wing 950no outlineSpecs · table ↓

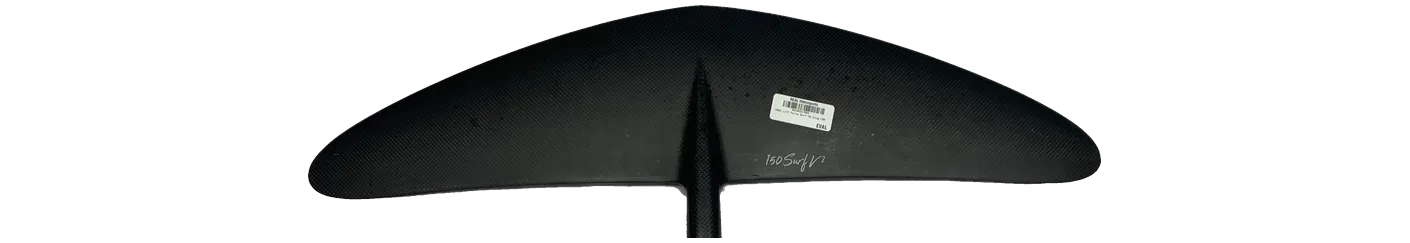

Lift Foils 150 Surf V2 Front Wing · 793 mm span · traced from a retailer’s photograph · drawn nose-up, wings aligned on the mid-point of the root chord (the dotted line). ▬ Sabfoil Sea Devil 780 Blackbird · 780 mm

Closest wings from other brands

Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.

Current wings from other brands within ±5% of area and ±8% of aspect ratio of the Lift Foils 150 Surf V2 Front Wing, closest first.
Brand	Wing	Area cm²	Δ area	Aspect ratio	Δ AR	Span mm	Band
RRD	Blaze LTE Front Wing Y30 950	950	-1.9%	6.50	+0.0%	790	Mid-low aspect
Sabfoil	Sea Devil 780 Blackbird	950	-1.9%	6.40	-1.5%	780	Mid-low aspect
F-One	PHANTOM Carbon 980	980	+1.2%	6.20	-4.6%	780	Mid-low aspect
F-One	PHANTOM S Carbon PHANTOM-S 940	940	-2.9%	6.50	+0.0%	780	Mid-low aspect
Duotone	Carve 3.0 D/LAB 950	950	-1.9%	6.90	+6.2%	810	Mid-low aspect
Cabrinha	Fusion X-Series MkII X930	930	-3.9%	6.05	-6.9%	750	Mid-low aspect
Axis	HPS (High Performance Speed) 830	1,014	+4.8%	7.00	+7.7%	830	Mid-low aspect
ENSIS	PACER Front Wing 950	950	-1.9%	6.00	-7.7%	754	Low aspect

Specifications

Every figure is Lift Foils's own, read from the source linked in the last row, converted to area in cm² and span in mm.
Family	Surf V2 (discontinued sizes)
Size	150
Area, cm²	968
Area basis	unknown
Span, mm	793
Chord, mm	—
Aspect ratio	6.50
Band	Mid-low aspect
Brand’s category	Surf / carve
Disciplines	prone, efoil, wing, downwind
Construction	carbon
Model year	2023
Source	manufacturer · read 2026-08-13

The brand publishes this aspect ratio but no span, so it cannot be checked against the wing's own geometry.

Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
