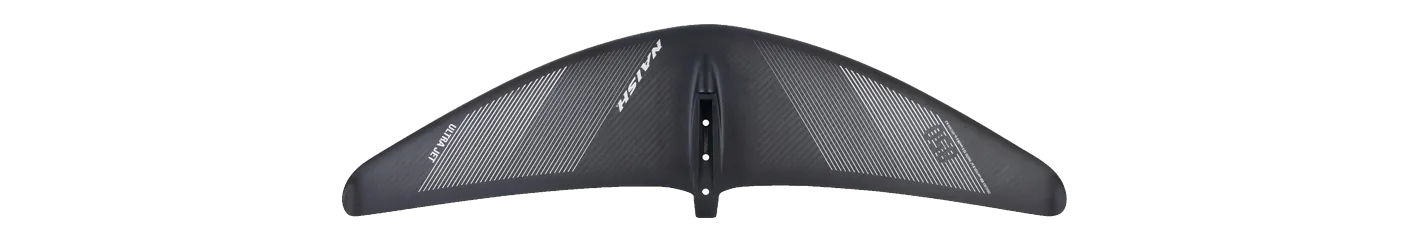

Naish Ultra Jet Front Wing 850
- 850area, cm²
- 725span, mm
- 6.20aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family Ultra Jet Area basis projected Brand’s category All-round / freeride Disciplines wing, sup, kite, prone carbon/glass composite · 2024-2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the GONG X-Over V3 M (#2), is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Ultra Jet Front Wing runs 8 sizes, 650–2,450 cm², and changes proportion as it grows: aspect ratio runs 4.1 at one end of the range to 7.1 at the other, so its sizes differ in shape as well as in area.
Its 725 mm span is 19% narrower than typical for the area — the median across the 126 current wings within 10% of its size is 894 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| RRD | Blaze LTE Front Wing Y30 850 | 850 | +0.0% | 6.20 | +0.0% | 725 | Mid-low aspect |
| GONG | X-Over V3 M | 850 | +0.0% | 6.40 | +3.2% | 740 | Mid-low aspect |
| F-One | PHANTOM S Carbon PHANTOM-S 840 | 840 | -1.2% | 6.50 | +4.8% | 740 | Mid-low aspect |
| Axis | BSC (Broad Spectrum Carve) 740 | 883 | +3.9% | 6.49 | +4.7% | 740 | Mid-low aspect |
| Axis | Spitfire 720 | 815 | -4.1% | 6.47 | +4.4% | 720 | Mid-low aspect |
Specifications
| Family | Ultra Jet |
|---|---|
| Size | Ultra Jet 850 |
| Area, cm² | 850 |
| Area basis | projected |
| Span, mm | 725 |
| Chord, mm | — |
| Aspect ratio | 6.20 |
| Band | Mid-low aspect |
| Brand’s category | All-round / freeride |
| Disciplines | wing, sup, kite, prone |
| Construction | carbon/glass composite |
| Model year | 2024-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
