Axis BSC (Broad Spectrum Carve) 740

883area, cm²
740span, mm
6.49aspect ratio
Mid-lowaspect · AR 6.0 – 8.5

Family BSC Area basis flat Chord 140 mm Brand’s category Surf / carve Disciplines wing, downwind, sup, prone, wake, pump, kite carbon · 2025-2026

Drawn to scale · the closest current wings

true relative scale

The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the GONG X-Over V3 M, is already drawn over it. Select a numbered wing to draw it — up to three at a time.

3RRD Blaze LTE Front Wing Y30 850no outline4RRD Universal Mantaray Front Wing Y30 850no outline5F-One PHANTOM S Carbon PHANTOM-S 840no outlineSpecs · table ↓

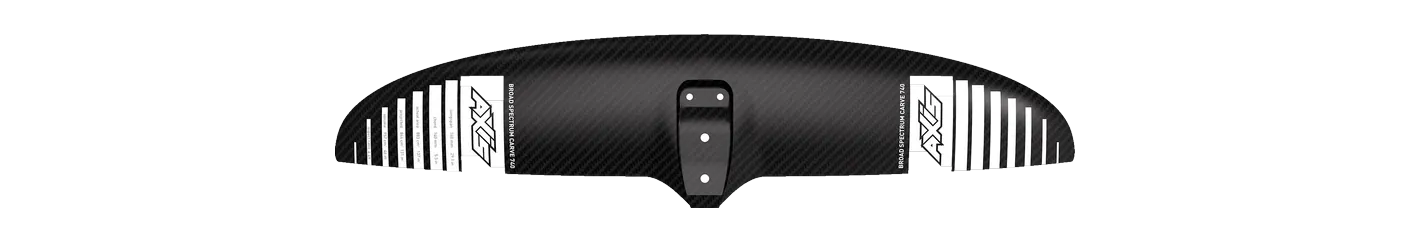

Axis BSC (Broad Spectrum Carve) 740 · 740 mm span · traced from the manufacturer’s plan view · drawn nose-up, wings aligned on the mid-point of the root chord (the dotted line). ▬ GONG X-Over V3 M · 740 mm

The BSC runs 6 sizes, 883–2,102 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.

Its 740 mm span is 17% narrower than typical for the area — the median across the 137 current wings within 10% of its size is 890 mm.

Closest wings from other brands

Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.

Current wings from other brands within ±5% of area and ±8% of aspect ratio of the Axis BSC (Broad Spectrum Carve) 740, closest first.
Brand	Wing	Area cm²	Δ area	Aspect ratio	Δ AR	Span mm	Band
GONG	X-Over V3 M	850	-3.7%	6.40	-1.4%	740	Mid-low aspect
Naish	Ultra Jet Front Wing 850	850	-3.7%	6.20	-4.5%	725	Mid-low aspect
RRD	Blaze LTE Front Wing Y30 850	850	-3.7%	6.20	-4.5%	725	Mid-low aspect
RRD	Universal Mantaray Front Wing Y30 850	850	-3.7%	6.70	+3.2%	760	Mid-low aspect
F-One	PHANTOM S Carbon PHANTOM-S 840	840	-4.9%	6.50	+0.2%	740	Mid-low aspect
GONG	Ascent V3 M	870	-1.5%	7.00	+7.9%	780	Mid-low aspect

Specifications

Every figure is Axis's own, read from the source linked in the last row, converted to area in cm² and span in mm.
Family	BSC
Size	BSC 740
Area, cm²	883
Area basis	flat
Span, mm	740
Chord, mm	140
Aspect ratio	6.49
Band	Mid-low aspect
Brand’s category	Surf / carve
Disciplines	wing, downwind, sup, prone, wake, pump, kite
Construction	carbon
Model year	2025-2026
Source	manufacturer

The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.

Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
