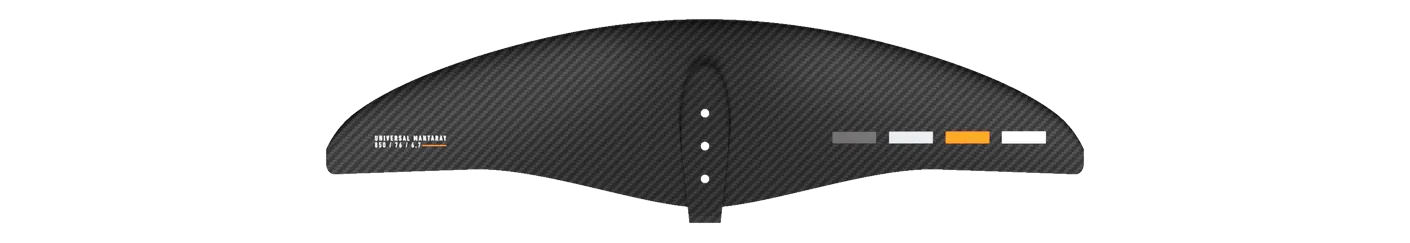

RRD Universal Mantaray Front Wing Y30 850
- 850area, cm²
- 760span, mm
- 6.70aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family UNIVERSAL MANTARAY Brand’s category All-round / freeride Disciplines wing, prone Full Carbon
The Universal Mantaray Front Wing Y30 runs 4 sizes, 650–1,350 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 760 mm span is 15% narrower than typical for the area — the median across the 126 current wings within 10% of its size is 894 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| F-One | PHANTOM S Carbon PHANTOM-S 840 | 840 | -1.2% | 6.50 | -3.0% | 740 | Mid-low aspect |
| GONG | Ascent V3 M | 870 | +2.4% | 7.00 | +4.5% | 780 | Mid-low aspect |
| GONG | X-Over V3 M | 850 | +0.0% | 6.40 | -4.5% | 740 | Mid-low aspect |
| Axis | BSC (Broad Spectrum Carve) 740 | 883 | +3.9% | 6.49 | -3.1% | 740 | Mid-low aspect |
| Axis | Spitfire 720 | 815 | -4.1% | 6.47 | -3.4% | 720 | Mid-low aspect |
| Naish | Ultra Jet Front Wing 850 | 850 | +0.0% | 6.20 | -7.5% | 725 | Mid-low aspect |
| North | Sonar MA850v2 | 850 | +0.0% | 7.20 | +7.5% | 780 | Mid-low aspect |
Specifications
| Family | UNIVERSAL MANTARAY |
|---|---|
| Size | 850 |
| Area, cm² | 850 |
| Area basis | unknown |
| Span, mm | 760 |
| Chord, mm | — |
| Aspect ratio | 6.70 |
| Band | Mid-low aspect |
| Brand’s category | All-round / freeride |
| Disciplines | wing, prone |
| Construction | Full Carbon |
| Model year | — |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
