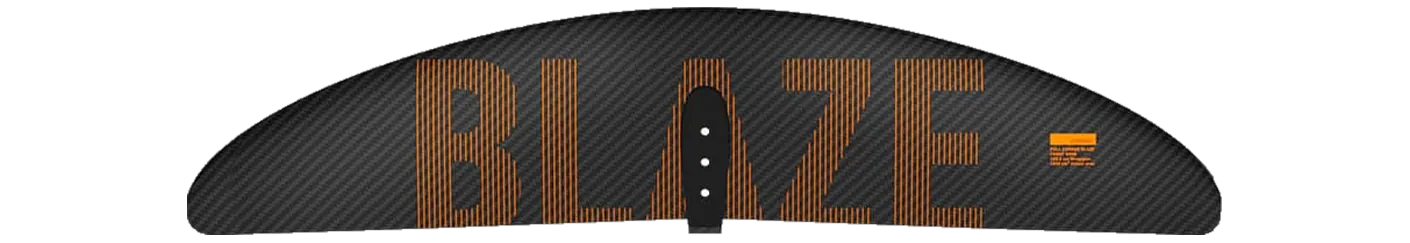

RRD Blaze LTE Front Wing Y30 1850
- 1,850area, cm²
- 1,035span, mm
- 6.00aspect ratio
- Lowaspect · AR ≤ 6.0
Family BLAZE LTE Chord 226 mm Brand’s category All-round / freeride Disciplines wing, prone Hybrid Carbon
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the AFS Flyer Front Wing 1800 (#2), is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Blaze LTE Front Wing Y30 runs 6 sizes, 850–1,850 cm²; aspect ratio moves 6.0–6.5 across the range.
Its 1,035 mm span is 20% narrower than typical for the area — the median across the 61 current wings within 10% of its size is 1,300 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| ENSIS | PACER Front Wing 1850 | 1,850 | +0.0% | 6.00 | +0.0% | 1,054 | Low aspect |
| AFS | Flyer Front Wing 1800 | 1,800 | -2.7% | 6.30 | +5.0% | 1,050 | Mid-low aspect |
| F-One | PHANTOM Carbon 1780 | 1,780 | -3.8% | 6.40 | +6.7% | 1,070 | Mid-low aspect |
| Takuma | LOL ProFoil Front Wing 1900 | 1,900 | +2.7% | 5.58 | -7.0% | 1,030 | Low aspect |
Specifications
| Family | BLAZE LTE |
|---|---|
| Size | 1850 |
| Area, cm² | 1,850 |
| Area basis | unknown |
| Span, mm | 1,035 |
| Chord, mm | 226 |
| Aspect ratio | 6.00 |
| Band | Low aspect |
| Brand’s category | All-round / freeride |
| Disciplines | wing, prone |
| Construction | Hybrid Carbon |
| Model year | — |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
