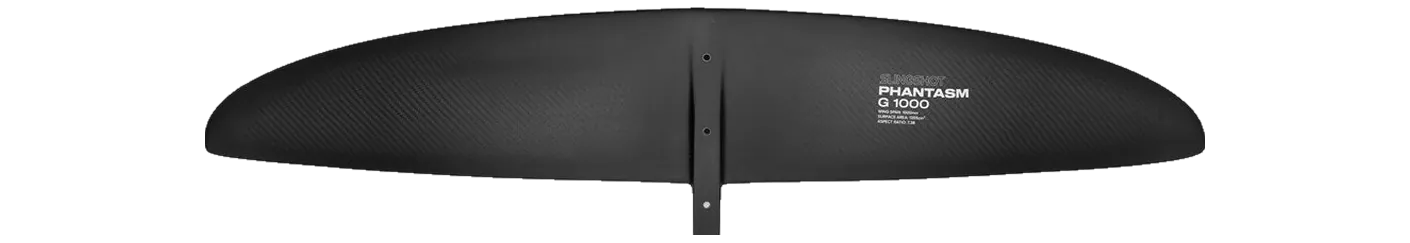

Slingshot G 1000
- Discontinuedsuperseded or no longer in the brand’s current range
- 1,355area, cm²
- 1,000span, mm
- 7.38aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family Phantasm G Brand’s category Glide / high aspect Disciplines wing, prone carbon · 2022
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Axis HPS (High Performance Speed) 980, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Phantasm G has run 4 sizes, 900–1,355 cm², including discontinued sizes, and changes proportion as it grows: aspect ratio runs 5.4 at one end of the range to 7.4 at the other, so its sizes differ in shape as well as in area.
Its 1,000 mm span is 7% narrower than typical for the area — the median across the 94 current wings within 10% of its size is 1,070 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Axis | HPS (High Performance Speed) 980 | 1,323 | -2.4% | 7.49 | +1.5% | 980 | Mid-low aspect |
| ENSIS | INFINITY ACE Front Wing 1390 | 1,390 | +2.6% | 7.50 | +1.6% | 1,020 | Mid-low aspect |
| Duotone | Free 2.0 1300 | 1,300 | -4.1% | 7.20 | -2.4% | 970 | Mid-low aspect |
| KT Foiling | Instinct 1300 | 1,300 | -4.1% | 7.16 | -3.0% | 965 | Mid-low aspect |
| GONG | Ascent V3 XL | 1,290 | -4.8% | 7.00 | -5.1% | 950 | Mid-low aspect |
| Unifoil | Progression 200 | 1,290 | -4.8% | 7.90 | +7.0% | 1,010 | Mid-low aspect |
Specifications
| Family | Phantasm G |
|---|---|
| Size | 1000 |
| Area, cm² | 1,355 |
| Area basis | unknown |
| Span, mm | 1,000 |
| Chord, mm | — |
| Aspect ratio | 7.38 |
| Band | Mid-low aspect |
| Brand’s category | Glide / high aspect |
| Disciplines | wing, prone |
| Construction | carbon |
| Model year | 2022 |
| Source | manufacturer · read 2026-08-13 |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
