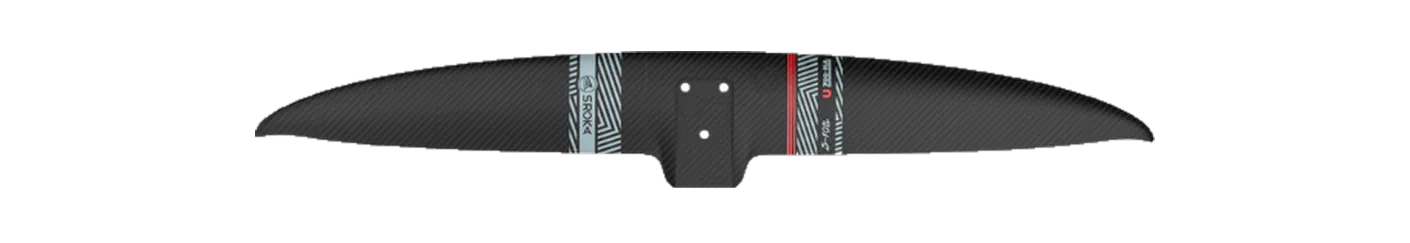

Sroka S-Foil UHA 700
- 700area, cm²
- 900span, mm
- 11.60aspect ratio
- Very highaspect · AR 11.5 – 15.0
Family UHA Chord 103 mm Brand’s category Glide / high aspect Disciplines wing
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the GONG Hyper Trail V3 Atmo S, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The UHA runs 6 sizes, 700–1,550 cm²; aspect ratio moves 11.0–11.6 across the range.
Its 900 mm span is 11% wider than typical for the area — the median across the 122 current wings within 10% of its size is 812 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| GONG | Hyper Trail V3 Atmo S | 700 | +0.0% | 11.40 | -1.7% | 890 | High aspect |
| F-One | EAGLE X UHM Carbon 700 | 700 | +0.0% | 12.00 | +3.4% | 915 | Very high aspect |
| F4 Foils | GP Orca 685 V2 | 685 | -2.1% | 12.00 | +3.4% | 920 | Very high aspect |
| Axis | ART PRO 901 | 686 | -2.0% | 12.04 | +3.8% | 901 | Very high aspect |
| AFS | Enduro Front Wing 700 | 700 | +0.0% | 11.00 | -5.2% | 877 | High aspect |
| Duotone | Glide 3.0 D/LAB 700 | 700 | +0.0% | 12.20 | +5.2% | 920 | Very high aspect |
| Takoon | Flow Front Wing 700 | 700 | +0.0% | 10.70 | -7.8% | 865 | High aspect |
Specifications
| Family | UHA |
|---|---|
| Size | UHA 700 |
| Area, cm² | 700 |
| Area basis | unknown |
| Span, mm | 900 |
| Chord, mm | 103 |
| Aspect ratio | 11.60 |
| Band | Very high aspect |
| Brand’s category | Glide / high aspect |
| Disciplines | wing |
| Construction | — |
| Model year | — |
| Source | manufacturer · read 2026-10-05 |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
