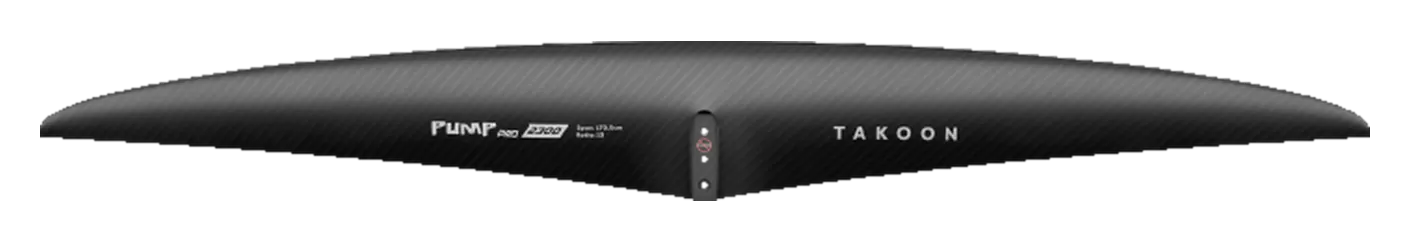

Takoon Pump Pro Front Wing 1350
- 1,350area, cm²
- 1,330span, mm
- 13.00aspect ratio
- Very highaspect · AR 11.5 – 15.0
Family Pump Pro Chord 152 mm Brand’s category Pump / dock Disciplines pump, sup, prone, downwind
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Sabfoil Leviathan Blackbird 1300, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Pump Pro Front Wing runs 5 sizes, 1,350–2,300 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 1,330 mm span is 24% wider than typical for the area — the median across the 94 current wings within 10% of its size is 1,070 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Sabfoil | Leviathan Blackbird 1300 | 1,330 | -1.5% | 12.30 | -5.4% | 1,280 | Very high aspect |
| GONG | Veloce Light Wind (LW) V3 Atmo XXL | 1,400 | +3.7% | 12.70 | -2.3% | 1,330 | Very high aspect |
| Sabfoil | Leviathan PRO 1360 | 1,400 | +3.7% | 12.44 | -4.3% | 1,320 | Very high aspect |
| Code Foils | Kanga Series Front Wing 1390 | 1,390 | +3.0% | 12.10 | -6.9% | 1,300 | Very high aspect |
| Axis | Fireball ULTRA 1350 | 1,309 | -3.0% | 13.93 | +7.2% | 1,350 | Very high aspect |
Specifications
| Family | Pump Pro |
|---|---|
| Size | 1350 |
| Area, cm² | 1,350 |
| Area basis | unknown |
| Span, mm | 1,330 |
| Chord, mm | 152 |
| Aspect ratio | 13.00 |
| Band | Very high aspect |
| Brand’s category | Pump / dock |
| Disciplines | pump, sup, prone, downwind |
| Construction | — |
| Model year | — |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
