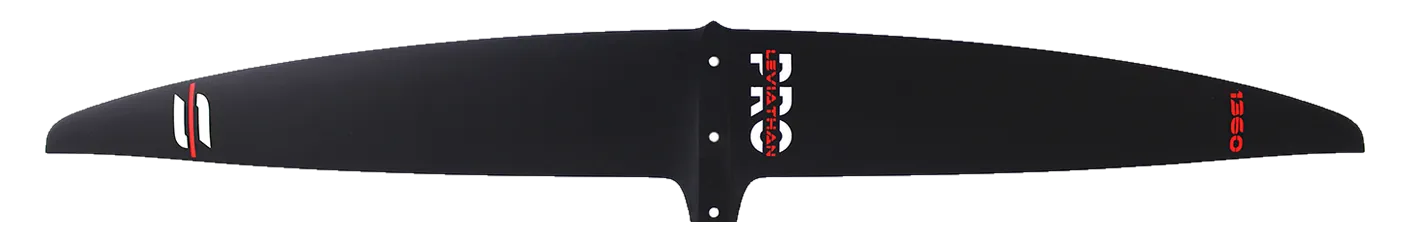

Sabfoil Leviathan PRO 1360
- 1,400area, cm²
- 1,320span, mm
- 12.44aspect ratio
- Very highaspect · AR 11.5 – 15.0
Family Leviathan PRO Chord 140 mm Brand’s category Downwind Disciplines pump, sup, downwind 2025-2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the GONG Veloce Light Wind (LW) V3 Atmo XXL, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Leviathan PRO runs 4 sizes, 947–1,400 cm²; aspect ratio moves 11.5–12.9 across the range.
Its 1,320 mm span is 20% wider than typical for the area — the median across the 88 current wings within 10% of its size is 1,098 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| GONG | Veloce Light Wind (LW) V3 Atmo XXL | 1,400 | +0.0% | 12.70 | +2.1% | 1,330 | Very high aspect |
| Code Foils | Kanga Series Front Wing 1390 | 1,390 | -0.7% | 12.10 | -2.7% | 1,300 | Very high aspect |
| Takoon | Pump Pro Front Wing 1350 | 1,350 | -3.6% | 13.00 | +4.5% | 1,330 | Very high aspect |
Specifications
| Family | Leviathan PRO |
|---|---|
| Size | Leviathan PRO 1360 |
| Area, cm² | 1,400 |
| Area basis | unknown |
| Span, mm | 1,320 |
| Chord, mm | 140 |
| Aspect ratio | 12.44 |
| Band | Very high aspect |
| Brand’s category | Downwind |
| Disciplines | pump, sup, downwind |
| Construction | — |
| Model year | 2025-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
