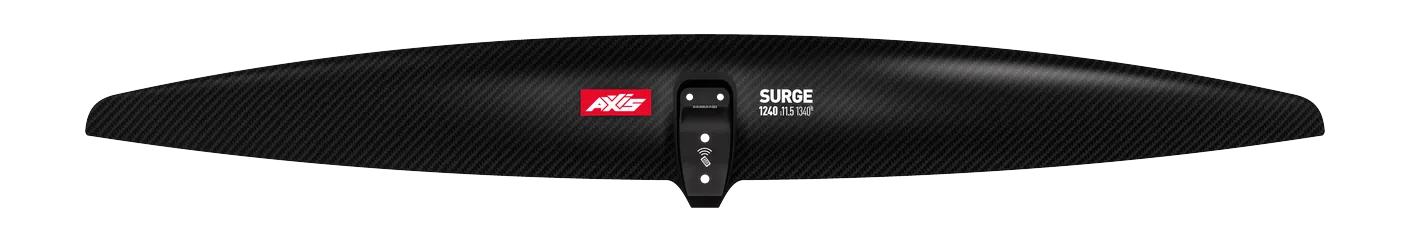

Axis Surge 1240
- 1,340area, cm²
- 1,240span, mm
- 11.48aspect ratio
- Highaspect · AR 9.5 – 11.5
Family Surge Area basis flat Chord 142 mm Brand’s category Surf / carve Disciplines downwind, parawing, wing, sup carbon
The Surge runs 9 sizes, 590–1,340 cm², and changes proportion as it grows: aspect ratio runs 9.3 at one end of the range to 11.5 at the other, so its sizes differ in shape as well as in area.
Its 1,240 mm span is 16% wider than typical for the area — the median across the 101 current wings within 10% of its size is 1,070 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| KT Foiling | Atlas 1340 | 1,340 | +0.0% | 11.10 | -3.3% | 1,220 | High aspect |
| AFS | Enduro Front Wing 1300 | 1,300 | -3.0% | 11.00 | -4.2% | 1,190 | High aspect |
| Code Foils | Kanga Series Front Wing 1390 | 1,390 | +3.7% | 12.10 | +5.4% | 1,300 | Very high aspect |
| Armstrong | APF (All-round Pump Foil) APF1350 | 1,350 | +0.7% | 10.70 | -6.8% | 1,202 | High aspect |
| RRD | Universal Moonfish Front Wing Y30 1350 | 1,350 | +0.7% | 10.70 | -6.8% | 1,200 | High aspect |
| Sabfoil | Leviathan Blackbird 1300 | 1,330 | -0.7% | 12.30 | +7.1% | 1,280 | Very high aspect |
| Duotone | Glide 3.0 SLS 1400 | 1,400 | +4.5% | 11.00 | -4.2% | 1,240 | High aspect |
| GONG | Sirus V3 Atmo L (Team / Carbon HM) | 1,400 | +4.5% | 11.00 | -4.2% | 1,240 | High aspect |
| North | Sonar DW1400 | 1,400 | +4.5% | 11.20 | -2.4% | 1,250 | High aspect |
| GONG | Veloce Free Fly (FF) V3 Atmo XXL | 1,300 | -3.0% | 10.60 | -7.7% | 1,170 | High aspect |
Specifications
| Family | Surge |
|---|---|
| Size | Surge 1240 |
| Area, cm² | 1,340 |
| Area basis | flat |
| Span, mm | 1,240 |
| Chord, mm | 142 |
| Aspect ratio | 11.48 |
| Band | High aspect |
| Brand’s category | Surf / carve |
| Disciplines | downwind, parawing, wing, sup |
| Construction | carbon |
| Model year | — |
| Source | manufacturer · read 2026-09-29 |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
