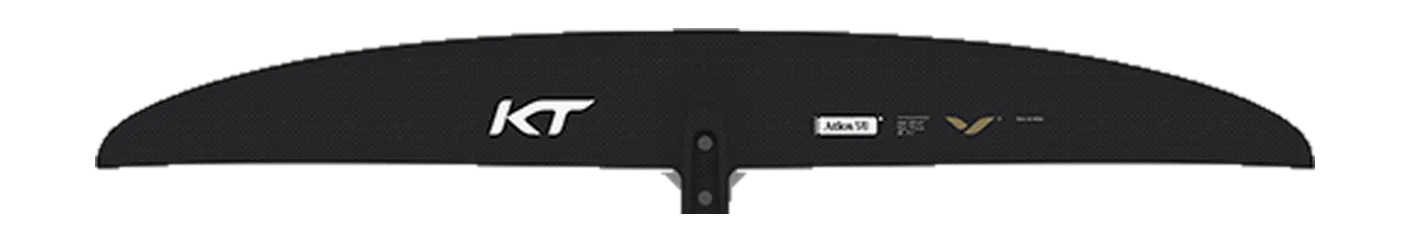

KT Foiling Atlas 1340

1,340area, cm²
1,220span, mm
11.10aspect ratio
Highaspect · AR 9.5 – 11.5

Family Atlas Brand’s category Glide / high aspect Disciplines prone, wing, downwind, sup, wake, pump, tow, kite, race standard-modulus carbon plus · 2025-2026

Drawn to scale · the closest current wings

true relative scale

The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Axis ART PRO 1201, is already drawn over it. Select a numbered wing to draw it — up to three at a time.

3RRD Universal Moonfish Front Wing Y30 1350no outline7North Sonar DW1400no outlineSpecs · table ↓

KT Foiling Atlas 1340 · 1,220 mm span · traced from the manufacturer’s plan view · drawn nose-up, wings aligned on the mid-point of the root chord (the dotted line). ▬ Axis ART PRO 1201 · 1,201 mm

The Atlas runs 6 sizes, 570–1,340 cm²; aspect ratio moves 10.5–11.1 across the range.

Its 1,220 mm span is 14% wider than typical for the area — the median across the 95 current wings within 10% of its size is 1,070 mm.

Closest wings from other brands

Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.

Current wings from other brands within ±5% of area and ±8% of aspect ratio of the KT Foiling Atlas 1340, closest first.
Brand	Wing	Area cm²	Δ area	Aspect ratio	Δ AR	Span mm	Band
Axis	ART PRO 1201	1,318	-1.6%	11.14	+0.4%	1,201	High aspect
Armstrong	APF (All-round Pump Foil) APF1350	1,350	+0.7%	10.70	-3.6%	1,202	High aspect
RRD	Universal Moonfish Front Wing Y30 1350	1,350	+0.7%	10.70	-3.6%	1,200	High aspect
AFS	Enduro Front Wing 1300	1,300	-3.0%	11.00	-0.9%	1,190	High aspect
GONG	Veloce Free Fly (FF) V3 Atmo XXL	1,300	-3.0%	10.60	-4.5%	1,170	High aspect
GONG	Sirus V3 Atmo L (Team / Carbon HM)	1,400	+4.5%	11.00	-0.9%	1,240	High aspect
North	Sonar DW1400	1,400	+4.5%	11.20	+0.9%	1,250	High aspect
F-One	JAM HM Carbon 1400	1,400	+4.5%	10.30	-7.2%	1,200	High aspect

Specifications

Every figure is KT Foiling's own, read from the source linked in the last row, converted to area in cm² and span in mm.
Family	Atlas
Size	Atlas 1340
Area, cm²	1,340
Area basis	unknown
Span, mm	1,220
Chord, mm	—
Aspect ratio	11.10
Band	High aspect
Brand’s category	Glide / high aspect
Disciplines	prone, wing, downwind, sup, wake, pump, tow, kite, race
Construction	standard-modulus carbon plus
Model year	2025-2026
Source	manufacturer

The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.

Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
