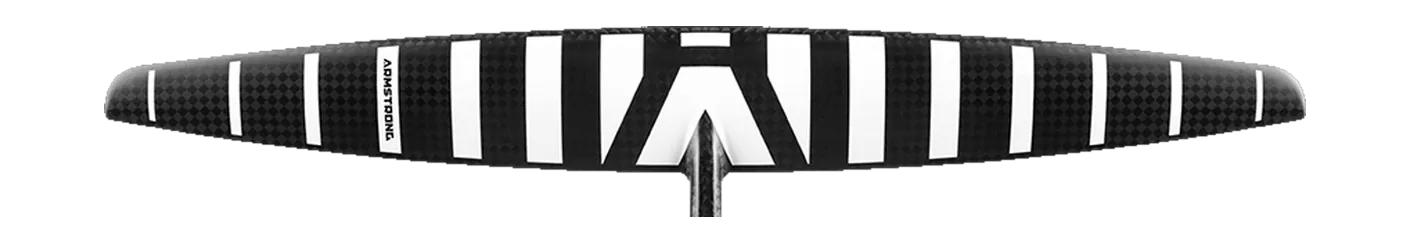

Armstrong APF (All-round Pump Foil) APF1350
- 1,350area, cm²
- 1,202span, mm
- 10.70aspect ratio
- Highaspect · AR 9.5 – 11.5
Family APF Brand’s category Pump / dock Disciplines pump carbon · 2025-2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the KT Foiling Atlas 1340 (#2), is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The APF runs 3 sizes, 1,350–1,880 cm², and changes proportion as it grows: aspect ratio runs 8.6 at one end of the range to 10.7 at the other, so its sizes differ in shape as well as in area.
Its 1,202 mm span is 12% wider than typical for the area — the median across the 94 current wings within 10% of its size is 1,070 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| RRD | Universal Moonfish Front Wing Y30 1350 | 1,350 | +0.0% | 10.70 | +0.0% | 1,200 | High aspect |
| KT Foiling | Atlas 1340 | 1,340 | -0.7% | 11.10 | +3.7% | 1,220 | High aspect |
| Axis | ART PRO 1201 | 1,318 | -2.4% | 11.14 | +4.1% | 1,201 | High aspect |
| Naish | Excalibur HA Front Wing 1344 | 1,344 | -0.4% | 10.20 | -4.7% | 1,170 | High aspect |
| GONG | Trail V3 Atmo L (Team / Carbon HM) | 1,350 | +0.0% | 10.10 | -5.6% | 1,170 | High aspect |
| AFS | Enduro Front Wing 1300 | 1,300 | -3.7% | 11.00 | +2.8% | 1,190 | High aspect |
| F-One | JAM HM Carbon 1400 | 1,400 | +3.7% | 10.30 | -3.7% | 1,200 | High aspect |
| GONG | Sirus V3 Atmo L (Team / Carbon HM) | 1,400 | +3.7% | 11.00 | +2.8% | 1,240 | High aspect |
| GONG | Veloce Free Fly (FF) V3 Atmo XXL | 1,300 | -3.7% | 10.60 | -0.9% | 1,170 | High aspect |
| GONG | Veloce V3 Atmo XXL | 1,300 | -3.7% | 10.10 | -5.6% | 1,150 | High aspect |
| North | Sonar DW1400 | 1,400 | +3.7% | 11.20 | +4.7% | 1,250 | High aspect |
| Duotone | Glide 2.0 SLS 1350 | 1,350 | +0.0% | 9.90 | -7.5% | 1,160 | High aspect |
Specifications
| Family | APF |
|---|---|
| Size | APF1350 |
| Area, cm² | 1,350 |
| Area basis | unknown |
| Span, mm | 1,202 |
| Chord, mm | — |
| Aspect ratio | 10.70 |
| Band | High aspect |
| Brand’s category | Pump / dock |
| Disciplines | pump |
| Construction | carbon |
| Model year | 2025-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
