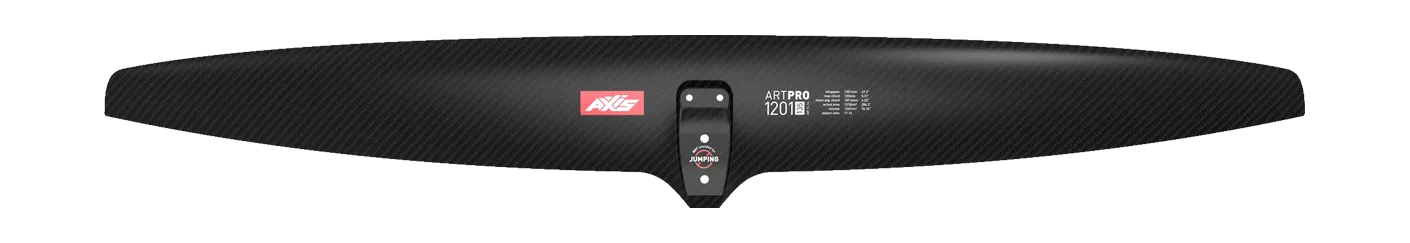

Axis ART PRO 1201

1,318area, cm²
1,201span, mm
11.14aspect ratio
Highaspect · AR 9.5 – 11.5

Family ART PRO Area basis flat Chord 135 mm Brand’s category Glide / high aspect carbon · 2025-2026

Drawn to scale · the closest current wings

true relative scale

The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the AFS Enduro Front Wing 1300, is already drawn over it. Select a numbered wing to draw it — up to three at a time.

4RRD Universal Moonfish Front Wing Y30 1350no outlineSpecs · table ↓

Axis ART PRO 1201 · 1,201 mm span · traced from the manufacturer’s plan view · drawn nose-up, wings aligned on the mid-point of the root chord (the dotted line). ▬ AFS Enduro Front Wing 1300 · 1,190 mm

The ART PRO runs 10 sizes, 518–1,647 cm²; aspect ratio moves 11.1–12.2 across the range.

Its 1,201 mm span is 14% wider than typical for the area — the median across the 105 current wings within 10% of its size is 1,050 mm.

Closest wings from other brands

Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.

Current wings from other brands within ±5% of area and ±8% of aspect ratio of the Axis ART PRO 1201, closest first.
Brand	Wing	Area cm²	Δ area	Aspect ratio	Δ AR	Span mm	Band
AFS	Enduro Front Wing 1300	1,300	-1.4%	11.00	-1.3%	1,190	High aspect
KT Foiling	Atlas 1340	1,340	+1.7%	11.10	-0.4%	1,220	High aspect
Armstrong	APF (All-round Pump Foil) APF1350	1,350	+2.4%	10.70	-3.9%	1,202	High aspect
RRD	Universal Moonfish Front Wing Y30 1350	1,350	+2.4%	10.70	-3.9%	1,200	High aspect
GONG	Veloce Free Fly (FF) V3 Atmo XXL	1,300	-1.4%	10.60	-4.8%	1,170	High aspect

Specifications

Every figure is Axis's own, read from the source linked in the last row, converted to area in cm² and span in mm.
Family	ART PRO
Size	ART PRO 1201
Area, cm²	1,318
Area basis	flat
Span, mm	1,201
Chord, mm	135
Aspect ratio	11.14
Band	High aspect
Brand’s category	Glide / high aspect
Disciplines	—
Construction	carbon
Model year	2025-2026
Source	manufacturer

The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.

Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
