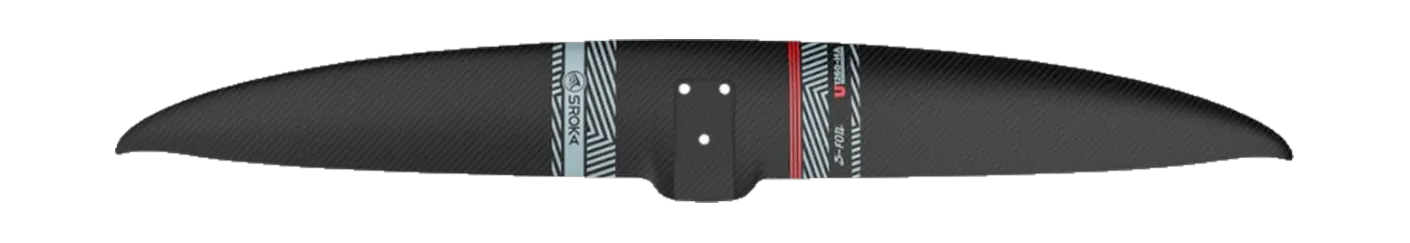

Sroka S-Foil UHA 1260

1,260area, cm²
1,179span, mm
11.00aspect ratio
Highaspect · AR 9.5 – 11.5

Family UHA Chord 136 mm Brand’s category Glide / high aspect Disciplines wing, downwind, sup, pump

Drawn to scale · the closest current wings

true relative scale

The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Duotone Glide 3.0 SLS 1250, is already drawn over it. Select a numbered wing to draw it — up to three at a time.

Specs · table ↓

Sroka S-Foil UHA 1260 · 1,179 mm span · traced from a photograph supplied to the project · drawn nose-up, wings aligned on the mid-point of the root chord (the dotted line). ▬ Duotone Glide 3.0 SLS 1250 · 1,180 mm

The UHA runs 6 sizes, 700–1,550 cm²; aspect ratio moves 11.0–11.6 across the range.

Its 1,179 mm span is 12% wider than typical for the area — the median across the 113 current wings within 10% of its size is 1,050 mm.

Closest wings from other brands

Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.

Current wings from other brands within ±5% of area and ±8% of aspect ratio of the Sroka S-Foil UHA 1260, closest first.
Brand	Wing	Area cm²	Δ area	Aspect ratio	Δ AR	Span mm	Band
Duotone	Glide 3.0 SLS 1250	1,250	-0.8%	11.20	+1.8%	1,180	High aspect
GONG	Hyper Trail V3 Atmo XL	1,250	-0.8%	11.40	+3.6%	1,190	High aspect
AFS	Enduro Front Wing 1300	1,300	+3.2%	11.00	+0.0%	1,190	High aspect
GONG	Veloce Free Fly (FF) V3 Atmo XXL	1,300	+3.2%	10.60	-3.6%	1,170	High aspect
Axis	ART PRO 1201	1,318	+4.6%	11.14	+1.3%	1,201	High aspect
Slingshot	One-Lock Flow 1200	1,200	-4.8%	11.00	+0.0%	1,149	High aspect
Takoon	Flow Front Wing 1200	1,200	-4.8%	10.50	-4.5%	1,120	High aspect
Axis	Surge 1150	1,199	-4.8%	11.04	+0.4%	1,150	High aspect

Specifications

Every figure is Sroka's own, read from the source linked in the last row, converted to area in cm² and span in mm.
Family	UHA
Size	UHA 1260
Area, cm²	1,260
Area basis	unknown
Span, mm	1,179
Chord, mm	136
Aspect ratio	11.00
Band	High aspect
Brand’s category	Glide / high aspect
Disciplines	wing, downwind, sup, pump
Construction	—
Model year	—
Source	manufacturer · read 2026-10-05

The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.

Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
